K-Nanos MWCNT 40~50 µm Aligned Bundle Carbon Nanotubes
K-Nanos MWCNT 40~50 µm Aligned Bundle Carbon Nanotubes
SKU:KNA-197c20
High-performance K-Nanos MWCNTs for versatile applications. Aligned bundle structure, superior conductivity, and thermal stability.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
K-Nanos MWCNT 40~50 µm Aligned Bundle Carbon Nanotubes
$99.99
Quantity: 1
Claim Your Seller Account
K-Nanos MWCNT 40~50 µm Aligned Bundle Carbon Nanotubes
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The K-Nanos Series Multi Walled Carbon Nanotubes offer exceptional dispersibility due to their aligned bundle structure, making polymer compounding effortless without the need for dispersants. With an average bundle length of 40~50 µm and a diameter of 11~13 nm, these MWCNTs are versatile for applications requiring antistatic, EMI shielding, heat generation, and heat dissipation properties. Kumho Petrochemical's high-density pellet type MWCNTs ensure ease of handling and storage. Trusted by major global manufacturers, these carbon nanotubes guarantee superior electrical conductivity, thermal stability, and strength.
Product Specifications
Additional Information

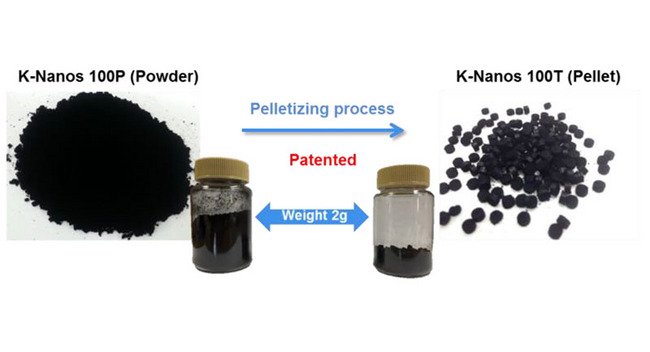

Kumho Petrochemical produce high-density pellet type MWCNTs without any additive, so this improves user's work environment and makes very easy to handle including storage, transport, weighing, etc. Kumho Petrochemical can provide an optimal carbon nanotubes for each application with various MWCNTs grades. Also Kumho Petrochemical keep on researching for property enhancement and new grade development.CNT is known as having excellent electrical conductivity, thermal conductivity, strength, and thermal stability. Demand for Li-ion Battery as positive electrode conductive additives has been increasing and CNT is also being used in applications such as tire treads and antistatic resins.Kumho's CNT have a highly oriented bundle structure and have been used by major battery manufacturers and tire manufacturers globally. Multiple grades of CNT are available depending on required property and each application, and we also have various types of rubber and resin compound and masterbatches.Kumho Petrochemical with one of the world's largest synthetic rubber manufacturing capacities was established in 1970 and developing their business in several fields including synthetic resins, specialty chemicals, nanocarbons, energy, and building materials.Major application with Kumho's CNTLi-ion Battery as positive electrode conductive additives for automotiveTire treadsElectronic Parts TraysConductive coatingElectro-Magnetic Interference (EMI) Shielding CompositeConductive resin/rubber
Technical Specs Average Bundle Length
40~50 µm
Technical Specs Average Diameter
11~13 nm
Technical Specs Brunauer Emmett Teller Bet
200~230 m²/g
Technical Specs Bulk Density P Powder Type
0.015~0.030 g/mL
Technical Specs Bulk Density T Pellet Type
0.060~0.140 g/mL
Technical Specs Carbon Purity
~95 %
Technical Specs Crystallinity
0.8~1.0 IG/ID
Technical Specs Reference
General Multi Walled Carbon Nanotubes (MWCNT)

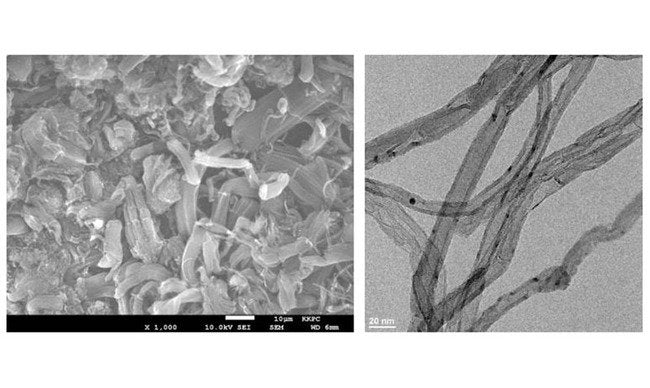

Technical Specs Test Method For Average Bundle Length
Field Emission Scanning Electron Microscopes (FE-SEM)
Technical Specs Test Method For Average Diameter
Transmission Electron Microscopy (TEM)
Technical Specs Test Method For Bulk Density P Powder Type
Tapping
Technical Specs Test Method For Bulk Density T Pellet Type
Tapping
Technical Specs Test Method For Carbon Purity
Thermal Gravimetric Analysis (TGA)
Technical Specs Test Method For Crystallinity
Raman
Technical Specs Tubing Type
Carbon Nanotubes
Technical Specs Type
Aligned Bundle
