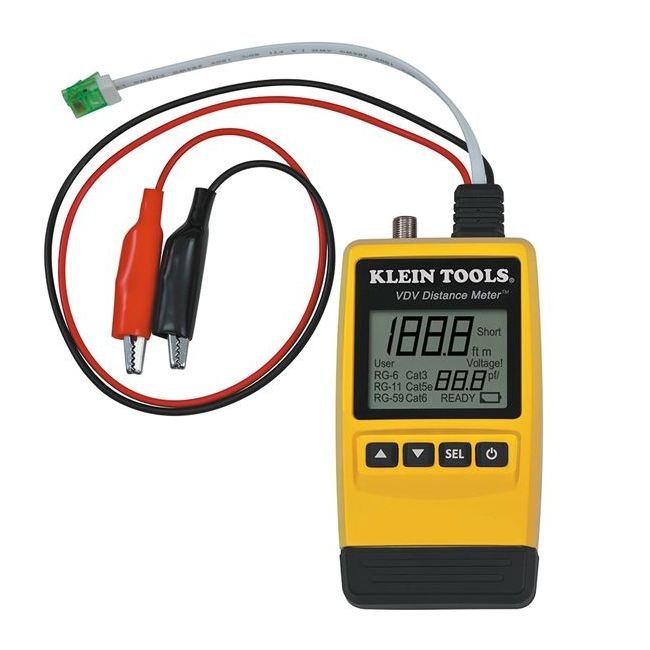

Klein® VDV Distance Meter - Cable Length Measurement Tool
Klein® VDV Distance Meter - Cable Length Measurement Tool
SKU:TOO-b3a201
Accurate Klein® VDV Distance Meter - Simplifies cable measurements up to 1500 ft, ideal for telecom professionals.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Klein® VDV Distance Meter - Cable Length Measurement Tool
$149.99
Quantity: 1
Claim Your Seller Account
Klein® VDV Distance Meter - Cable Length Measurement Tool
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Klein® VDV Distance Meter is a cutting-edge cable length measurement tool designed for precise measurements up to 1500 ft (457.2 m) with ± 5% accuracy. Featuring a Cable Fault Finder and Cable Manager, it simplifies cable estimating and ensures accurate job billing. Pre-programmed for various cable types, it offers imperial and metric units switching, capacitance adjustments, and voltage detection. With a sturdy build and user-friendly interface, this tool is essential for professionals in telecommunications and networking.
Product Specifications
Application
Cable Length Measurement
Dimensions Depth
1.4 in | 36 mm
Dimensions Overall Height
4.9 in | 123 mm
Dimensions Overall Width
2.7 in | 69 mm
Features
"Cable Length Measurement - determines paired-conductor cable length automatically up to 1,500 ft. (457 m) on most cables with accuracy of ± (5% + 1 ft. /0.3 m)."Cable Fault Finder determines if cable run is broken or damaged.Cable Manager measures cable remaining in box or on reel. Also simplifies cable estimating and helps you bill jobs more accurately."Pre-programmed with nominal cable length constants for: RG59 coaxial, RG6 coaxial, RG11 coaxial, CAT3 twisted pair, CAT5e twisted pair and CAT6 twisted pair.""User mode'' lets the user adjust the capacitance/foot constant based on the cable being tested.Voltage icon indicates a voltage (up to 20 volts AC or DC) is present in cable being tested and will disable unit.Measurements can be switched between metric and imperial units."Other features included: 2.25'' (57 mm) LCD display, auto-power off, low battery indicator and 2 year warranty."Length constant range: 10 to 40pF/ft. (33 to 132pF/meter)."Distance Meter includes: 2 alligator clip leads, 1 RJ-style twisted pair plug, 1 coaxial F-connector jack, 1 9V alkaline battery."Always wear approved eye protection.Do NOT use on energized circuits.The Ranger TDR internal components are protected up to 400V peak AC or DC. Connecting the instrument to voltages above this range may pose a safety hazard to the user and the instrument.
Note
Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
Specifications Accuracy
±(5% + 1 ft/0.3 m)
Specifications Active Battery Life
425 h
Specifications Batteries
(1) 9 V Alkaline
Specifications Brand
Klein®
Specifications Cable Type
RG59 Coaxial, RG6 Coaxial, RG11 Coaxial, CAT3 Twisted Pair, CAT5e Twisted Pair, CAT6 Twisted Pair
Specifications Low Battery Indicator
Yes
Specifications Maximum Cable Length
Up to 1500 ft | Up to 457 m
Specifications Number Of Batteries
1
Specifications Standby Battery Life
4 y
Specifications Type
Distance Meter
Specifications Unspsc Code
41113740
Specifications Upc Code
92644581830
Specifications Weight
0.21 kg | 0.47 lb
