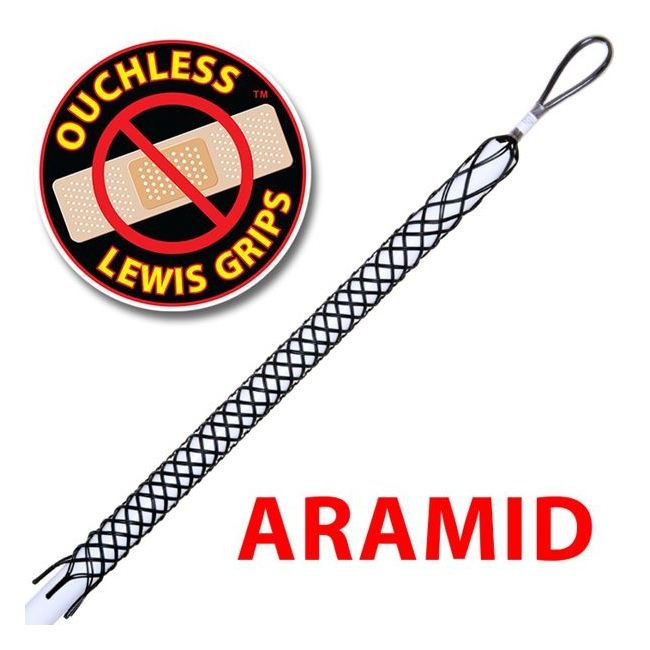

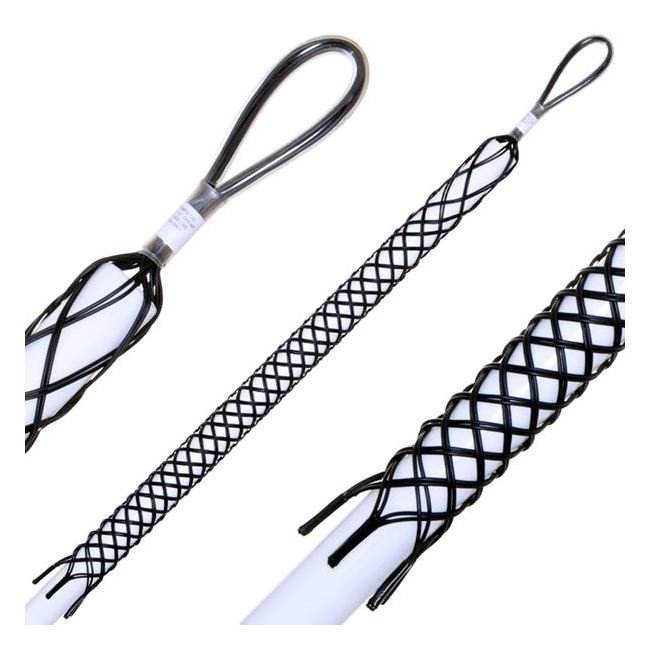

Lewis 1-1.5" Double Weave Single Eye Fiber Ouchless Grip™
Lewis 1-1.5" Double Weave Single Eye Fiber Ouchless Grip™
SKU:PUL-763110
The Lewis 1-1.5" Double Weave Single Eye Fiber Ouchless Grip™: non-conductive, lightweight, and safe, ideal for pulling electric or fiber optic cables.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Lewis 1-1.5" Double Weave Single Eye Fiber Ouchless Grip™
$29.99
Quantity: 1
Claim Your Seller Account
Lewis 1-1.5" Double Weave Single Eye Fiber Ouchless Grip™
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Lewis 1-1.5" Double Weave Single Eye Fiber Ouchless Grip™ is a reliable solution for pulling electric or fiber optic cables in overhead or underground operations. Made of tough plastic-coated Aramid fiber strands, this grip offers a work load of 3300 lb and ultimate tensile strength of 6600 lb. With a double-weave design and mesh closing feature, it ensures a secure hold without wire frays or cuts. Non-conductive and lighter than metal grips, it's safer and easier to handle. The grip's Aramid fiber construction eliminates the risk of injury from metallic strands, ideal for use in energized environments or where traditional metallic grips are unsuitable. Maintain safety and efficiency with the Ouchless Lewis Grips™.
Product Specifications
Additional Information
The Ouchless Lewis Grips™ do not have the metallic fraying as traditional Grip do thereby eliminating the chance of being injured from metallic strands that have been abraded. Ouchless Grips™ can also be used when a metallic grip is unsuitable, such as pulling in an energized environment.
Dimensions Eye
5 in
Dimensions Mesh
44 in
Dimensions Range
1 to 1 1/2 in
Features
Non ConductiveMuch Lighter than Metal GripsEasier to Load & RemoveNo Wire Frays or Wire CutsThe Aramid fiber strand can be used in essentially all grip configurations. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
Note
When using a pulling grip made of Aramid fibers or metal wire, always tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.
Specifications Brand
Lewis
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated Aramid Fiber
Specifications Style
SE Models
Specifications Type
Single Eye Ouchless Grip™
Specifications Ultimate Tensile Strength Uts
6600 lb
Specifications Weave
Double
Specifications Work Load Wl
3300 lb
