Lewis 1-1.5" Range Double Weave Ouchless Grip™
Lewis 1-1.5" Range Double Weave Ouchless Grip™
SKU:PUL-763110
Durable 1-1.5" Range Ouchless Grip™ for safe and efficient wire pulling in diverse environments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Lewis 1-1.5" Range Double Weave Ouchless Grip™
$49.99
Quantity: 1
Claim Your Seller Account
Lewis 1-1.5" Range Double Weave Ouchless Grip™
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

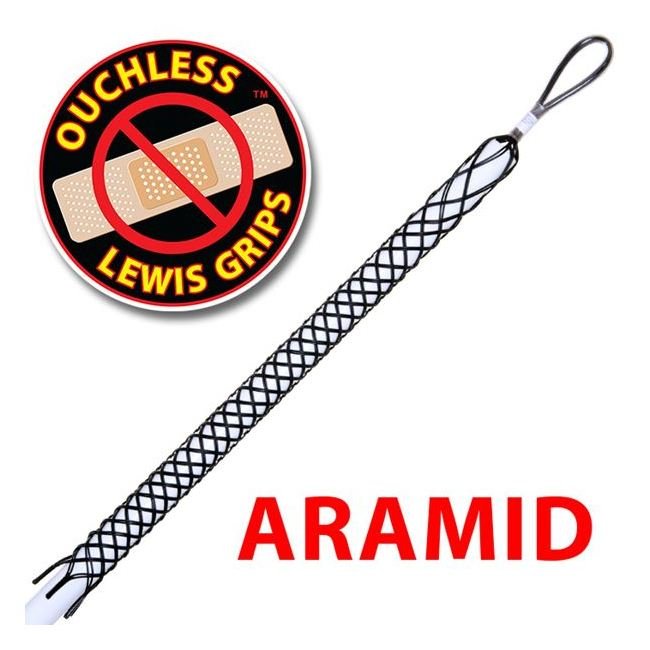

The Lewis 1-1.5" Range Double Weave Ouchless Grip™ is a durable solution for wire pulling in overhead and underground operations. Constructed from plastic-coated Aramid fiber strands, this grip offers a work load of 3300 lb and an Ultimate Tensile Strength of 6600 lb. Its mesh closing design makes it non-conductive, lighter than metal grips, and easier to load and remove, ensuring no wire frays or cuts. Ideal for energized environments, it eliminates the risk of injuries from metallic fraying, meeting stringent safety standards for institutional use.
Product Specifications
Additional Information
The Ouchless Lewis Grips™ do not have the metallic fraying as traditional Grip do thereby eliminating the chance of being injured from metallic strands that have been abraded. Ouchless Grips™ can also be used when a metallic grip is unsuitable, such as pulling in an energized environment.
Dimensions Eye
5 in
Dimensions Mesh
44 in
Dimensions Range
1 to 1 1/2 in
Features
Non ConductiveMuch Lighter than Metal GripsEasier to Load & RemoveNo Wire Frays or Wire CutsThe Aramid fiber strand can be used in essentially all grip configurations. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
Note
When using a pulling grip made of Aramid fibers or metal wire, always tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.
Specifications Brand
Lewis
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated Aramid Fiber
Specifications Style
SE Models
Specifications Type
Single Eye Ouchless Grip™
Specifications Ultimate Tensile Strength Uts
6600 lb
Specifications Weave
Double
Specifications Work Load Wl
3300 lb
