Lewis Double Weave Single Eye Fiber Ouchless Grip™ - 1 1/2 to 2 in. Range
Lewis Double Weave Single Eye Fiber Ouchless Grip™ - 1 1/2 to 2 in. Range
SKU:PUL-9a2e84
Effortlessly pull electric or fiber optic cables with Lewis Ouchless Grip™ - Safety & Efficiency Guaranteed
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Lewis Double Weave Single Eye Fiber Ouchless Grip™ - 1 1/2 to 2 in. Range
$39.99
Quantity: 1
Claim Your Seller Account
Lewis Double Weave Single Eye Fiber Ouchless Grip™ - 1 1/2 to 2 in. Range
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

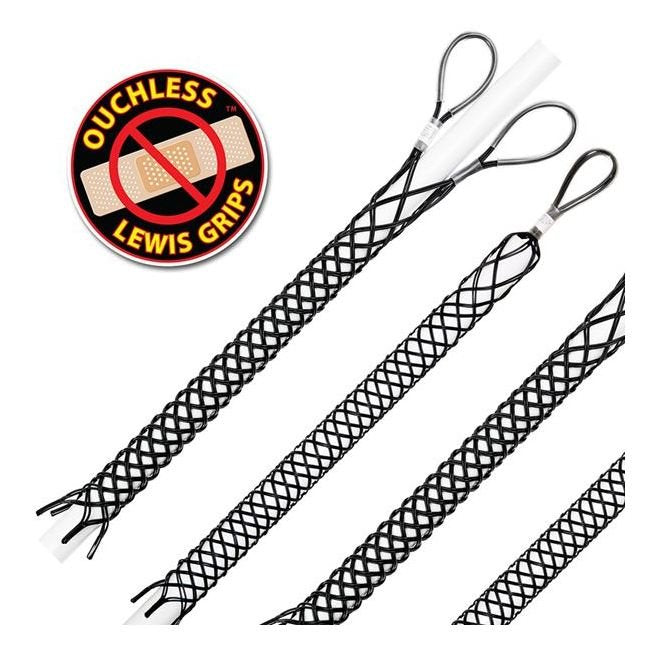

The Lewis 1 1/2 to 2 in. Range Double Weave Single Eye Fiber Ouchless Grip™ is a reliable and durable pulling grip designed for overhead or underground operations in the installation of electric or fiber optic cables. Made of tough plastic-coated Aramid fibers, this grip eliminates the risk of wire cuts or frays, ensuring a safe and efficient cable pulling process. With a work load of 3965 lb and an ultimate tensile strength of 7930 lb, the Lewis Ouchless Grip™ offers superior performance in diverse environments. Whether in energized settings or corrosive conditions, this non-conductive and lightweight grip provides ease of loading and removal without compromising on quality.
Product Specifications
Additional Information
The Ouchless Lewis Grips™ do not have the metallic fraying as traditional Grip do thereby eliminating the chance of being injured from metallic strands that have been abraded. Ouchless Grips™ can also be used when a metallic grip is unsuitable, such as pulling in an energized environment.
Dimensions Eye
5 in
Dimensions Mesh
44 in
Dimensions Range
1 1/2 to 2 in
Features
Non ConductiveMuch Lighter than Metal GripsEasier to Load & RemoveNo Wire Frays or Wire CutsThe Aramid fiber strand can be used in essentially all grip configurations. However when used around coastal areas or in corrosive environments the Stainless Steel option is still superior.
Note
When using a pulling grip made of Aramid fibers or metal wire, always tape the bare end of the cable that will be inserted into the grip. This will eliminate a sharp edge exposure and prolong the life of your grip.
Specifications Brand
Lewis
Specifications Grip Type
Mesh Closing
Specifications Material
Plastic-Coated Aramid Fiber
Specifications Style
SE Models
Specifications Type
Single Eye Ouchless Grip™
Specifications Ultimate Tensile Strength Uts
7930 lb
Specifications Weave
Double
Specifications Work Load Wl
3965 lb
