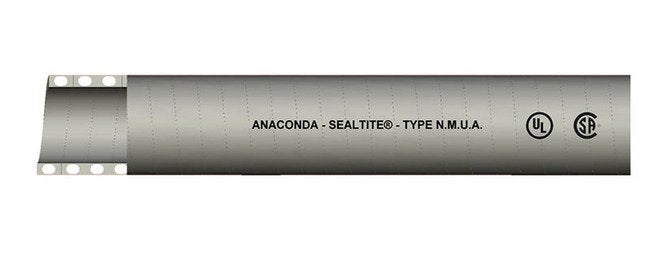

LFNC-B Non-Metallic Liquid-Tight Flexible Conduit - Type NMUA

Name: LFNC-B Non-Metallic Liquid-Tight Flexible Conduit - Type NMUA
Brand: Anamet Electrical, Inc.
SKU: LIQ-11b465
Price: 69.99 USD
Availability: OutOfStock

UL Listed LFNC-B Non-Metallic Liquid-Tight Flexible Conduit. Resistant, easy to install, and meets NEC standards.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The LFNC-B Non-Metallic Liquid-Tight Flexible Conduit, Type NMUA, is a thermoplastic PVC conduit designed for inside, outside, and corrosive applications. With a temperature range of -17ºF to +176ºF, this UL listed and CSA certified conduit meets Article 356 NEC standards. It features a non-metallic PVC construction suitable for various environments and an IP 67 rating when used with approved end connectors. Easy to install and resistant to oils, it adheres to industry certifications and is ideal for both exposed and concealed installations.

Product Specifications

Application 0

General Purpose Non-Metallic-Smooth Inner/Outer WallTemperature Range: of -17ºF to +176ºF (-27ºC to +80ºC).

Installation 0

Conduit used with standard connectors for non-metallic conduit Type B for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -17ºF to +176ºF (-27ºC to +80ºC).Complies with NEC Article 356 and UL Standard 1660 File No. E-211327; CSA C22.2 File No. 020817. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Approved for direct burial and in concrete trade sizes 3/8" through 2".

Nec Articles 0

Article 250.102 Equipment Bonding Jumpers Article 250.134 (B) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-B) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

2.0 in | 50.8 mm

Specifications Approx Weight Per 100 Ft

13 lbs | 5.90 kg

Specifications Color

GRAY

Specifications Core Material

Polyvinyl Chloride (PVC)

Specifications Cross Reference

55-09-41-01 | 6001-30-00 | 81001 | LFNC-B | NM | NM-10 | NMUA | NMUA-3/8

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 65/66/67

Specifications Inside Diameter

0.484 to 0.504 in | 12.294 to 12.802 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Outside Diameter

0.690 to 0.710 in | 17.526 to 18.034 mm

Specifications Packaging

Standard Carton

Specifications Type

NMUA

LFNC-B Non-Metallic Liquid-Tight Flexible Conduit - Type NMUA
