Enhance EDM machining precision with MANN + HUMMEL EDM Filters. Robust metal construction, 10µm filter fineness, and 19 ft² surface area for optimal performance.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

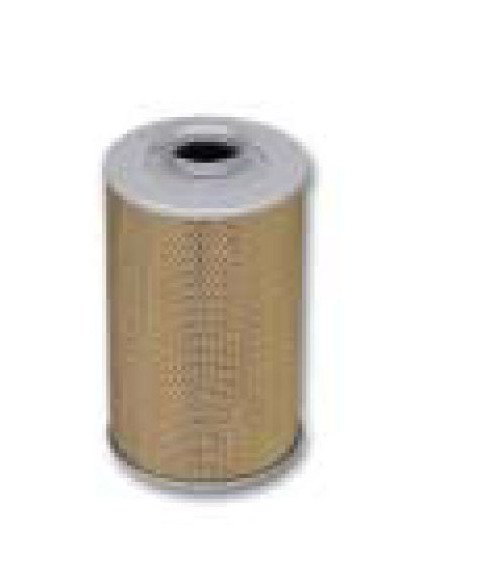

The MANN + HUMMEL Electrical Discharge Machining (EDM) Filters are designed for optimal performance in wire and sink erosion processes. With a filter surface area of 19 ft², these filters provide efficient filtration with a fineness of 10µm. The durable metal construction ensures longevity, while the flow direction from outside to inside enhances filtration efficiency. Meeting strict industrial standards, these filters deliver reliable performance and regulatory compliance, making them ideal for precision machining applications.

Product Specifications

Note 0

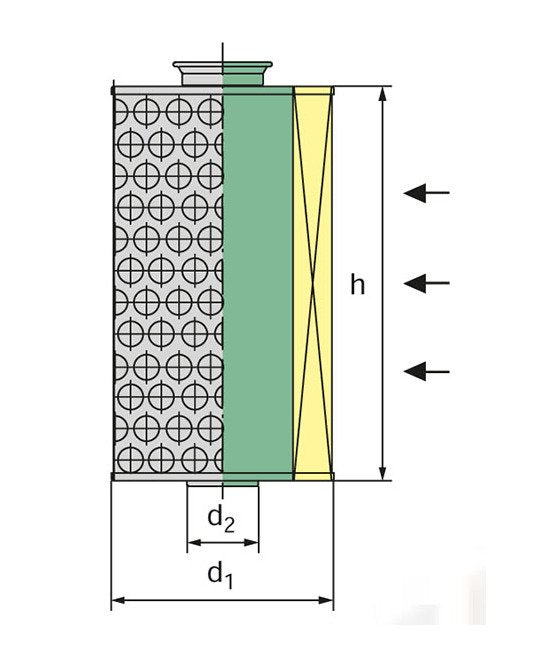

For wire and sink erosion.For Dimension d2 in mm:Connection dimension according to D N EN 10 305.

Specifications Design

Specifications Diameter

Up to 150 mm

Specifications Dimension D1

5.9 in | 150 mm

Specifications Dimension D2

0.9 in | 22 mm

Specifications Dimension H

9.9 in | 252 mm

Specifications Filter Fineness

10 µm

Specifications Filter Surface Area

19 ft² | 17900 cm²

Specifications Flow Direction

Outside to Inside

Specifications Material

Metal
