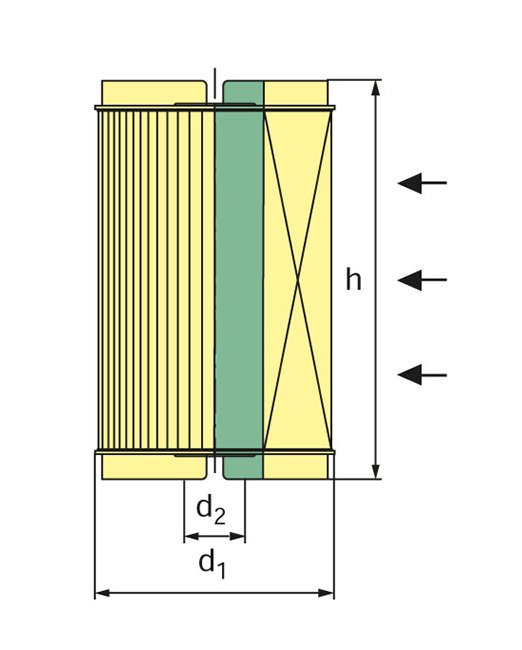

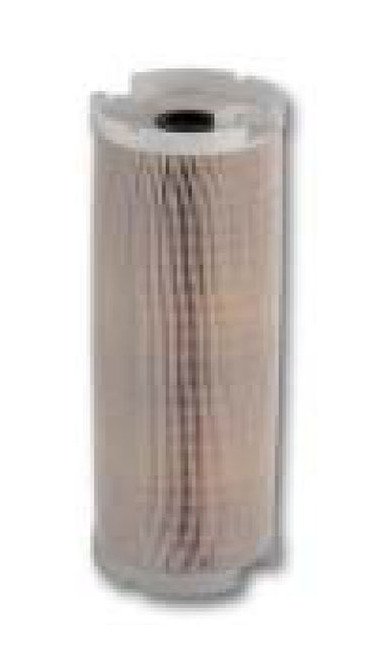

Enhance the effectiveness and efficiency of your Electrical Discharge Machining processes with MANN + HUMMEL EDM Filters. Featuring a premium plastic construction, these filters offer a large surface area of 30 ft² | 28100 cm² and a filter fineness of 1 to 2 µm, ensuring optimal filtration performance. With dimensions d1 of 5.9 in | 150 mm, d2 of 0.9 in | 22 mm, and h of 14.8 in | 375 mm, these filters are designed for wire and sink erosion applications. Their flow direction from outside to inside and compliance with D N EN 10 305 standards make them ideal for precision machining. Invest in MANN + HUMMEL EDM Filters for reliable filtration that meets institutional procurement requirements and enhances machining outcomes.

Product Specifications

Note 0

For wire and sink erosion.For Dimension d2 in mm:Connection dimension according to D N EN 10 305.

Specifications Design

Specifications Diameter

Up to 150 mm

Specifications Dimension D1

5.9 in | 150 mm

Specifications Dimension D2

0.9 in | 22 mm

Specifications Dimension H

14.8 in | 375 mm

Specifications Filter Fineness

1 to 2 µm

Specifications Filter Surface Area

30 ft² | 28100 cm²

Specifications Flow Direction

Outside to Inside

Specifications Material

Plastic
