MarShield Lead Wool Blanket
MarShield Lead Wool Blanket
High-density lead wool blanket for superior radiation protection. RF welded seams, grommet spacing, handles for easy handling.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
MarShield Lead Wool Blanket
$249.99
Quantity: 1
Claim Your Seller Account
MarShield Lead Wool Blanket
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MarShield Lead Wool Blanket is a highly versatile shielding solution designed for radiation protection in various applications. With a 15 lb/ft² density, this lead blanket offers superior dose rate reduction of up to 26%. It features RF welded seams, standard grommet spacing, and handles on the long side for easy maneuverability. Customizable in terms of size, color, and materials, the MarShield lead blanket meets or exceeds Federal Specification QQ-C-40 Type II Grade C, making it an ideal choice for institutions and government buyers requiring top-notch radiation shielding.
Product Specifications
Accessories Accessories
Serpentine Racking SystemsOur serpentine system is designed to provide virtually any shielding wall configuration, including low dose waiting areas, portable frisking caves, shadow shield walls, and shields for rad materials transfers.This sturdy and adjustable system was designed to replace scaffolding, currently used to hang Lead or Tungsten Blankets. By placing the installation process in the hands of the RP department, setup time and potentially critical path time is saved.We also offer a variety of H-Frame and custom racks to meet any needs a plant may have.Cargo NetsSubstitute scaffolding with lattice webbing and integral swivel hooks. These systems are custom manufactured to work with pipes, tanks, or other applications.Hooks & StrapsWe carry S-Hooks in a variety of standard sizes in both carbon steel and stainless steel. For added security, spring clips can be added to ensure the blanket cannot fall off the S-Hook. Cinch and ratchet straps also in stock to tie together and hold shielding in place.
Additional Options Additional Options
High temperature fiberglass material is available in greyAnti-microbial fabrics available. Many bio-hazardous contaminants can be washed off of anti-microbial fabric within 48 hours with mild soap and water. For example: blood, urine, barium and iodineAvailable fire-retarded rating compliance to match classifications from Military to Aviation applications. Highest rated fabric performance lab tested at 3,000ºF for 1 minute, with continuous operating temperature of 650ºF
Benefits Benefits
Mold lead blankets to many componentsLead wool rope stability, even with continuous hanging and rough use, has been proven to last more than 30 yearsCustomize outer covers with choice of color, material and company informationInformation related to previous orders can be tracked because every lead wool blanket has a traceable lot numberEasy and cost-effective solution to reduce radiation exposureLead blankets can be used for any application, including: temporary or permanent storage, covering shipments or pallets or contaminated materials and draping patients during CT scansMaintain a healthier and safer environmentCustom designed and manufactured to your exact specificationsProfessional engineering and custom on-site design services available. We can work with you to design a custom solution in a virtual CAD environment
Custom Lead Blankets Custom Lead Blankets

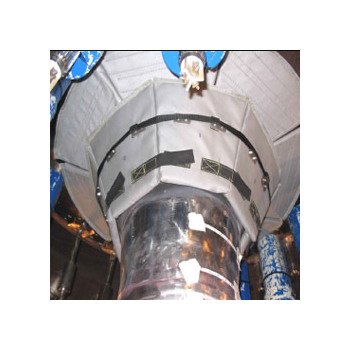

Curved Blankets, Magnets, StrapsLead wool blankets can be designed and made with nearly any 2D layout imaginable . Add magnets, Velcro, cutouts, grommets, and cinch straps, and create a blanket truly designed specifically to get the job done.Nozzle ShieldingWe have worked with several BWR plants to create bio-door and nozzle shielding. The circular magnetic shielding is designed to fit snuggly around the nozzle. All pieces are made to fit for each plant's specifications.Steam Gen ShieldingCustom fit to any plant's steam generators, these magnetically secured lead wool panels provide shielding between the worker and the side of the steam generator. The magnetism of these blankets allow for quick installation on any carbon steel surface while offering a significant dose reduction.
High Temperature Lead Blankets High Temperature Lead Blankets
Alpha Maritex BlanketsAvailable in various sizes, shapes and weights, our alpha maritex coverings can withstand continuous temperatures of 550+ degrees Fahrenheit (288 degrees Celsius). The blankets are typically used in high temperature applications and have been used as permanent shielding in some facilities.Lead Wool Magnetic Shielding TilesThese magnetic tiles allow for quick installation on any carbon steel surface while offering a significant dose reduction. The tiles are easy to use and are moldable to slightly curved surfaces. Low profile hand-holds allow for easy transport to the shielding location. Used in conjunction with other tiles, minimal streaming of radiation can be achieved.
Key Features Key Features
MarShield⢠lead blankets are available with lead wool, or lead plate.Custom sizes are available. Blankets can be stacked together for added protectionLead wool allows more flexibility in handling, consisting of fine strands of lead from 0.005" to 0.015" diameter of varying lengthLead cake is quilted to the inner cover to ensure no shiftingInner covers are fabricated from nuclear grade and ANI-approved materialThe periphery is glued, double-stitched and features # 5 brass grommets, spaced as requiredLead blankets are available in vinyl laminated nylon sheeting (125ºF max.) and silicon-impregnated fiberglass (500ºF max.)Standard color of vinyl-laminated cover is yellow, white or green. Custom colors are availableMeets or exceeds Federal Specification QQ-C-40 Type II Grade C
Ordering Ordering
When preparing to order, please have the following requirements available:Model numberLead equivalency/level of protection neededFinish - fabric/colorQuantity
Specifications Approximate Finished Blanket Thickness
5/8 in
Specifications Approximate Weight
30 lb
Specifications Density
15 lb/ft²
Specifications Dimension
1 x 2 ft
Specifications Dose Rate Reduction 60 Co Percentage
26 %
Specifications Lead Sheet Equivalent Thickness
3/16 in
Specifications Lead Sheet Part Number
MS-LI-222
Standard Lead Blankets Standard Lead Blankets

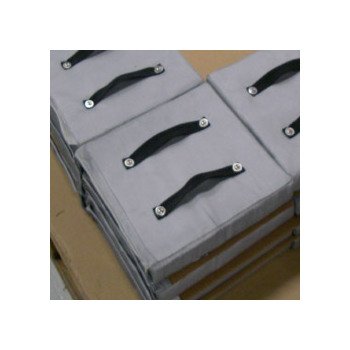

HandlesHandles set on the long sides of the blankets allow workers to lift and place blankets with ease. Blankets can now be easily and quickly moved from storage to hooks or racks in the areas they are needed. The larger borders on these blankets make for handles that can easily accommodate a gloved hand.Faster and easier handlingMore maneuverabilityCarry a blanket with one handBetter leverage for installationLead Blanket HandlesPrintingWeight of each blanket printed on the frontPart and lot numbers for quick identificationCustom printed plant/utility logosPrint extra details such as what unit the blanket should be in or what application it is forLead Blanket PrintingRFID TagsLocated under the label and used in conjunction with a scanner, RFID tags give a unique ID to each blanket at keeps track of its movement.Quick countingKeep track of how many blankets go in and outInventory management
