MARTIN® BULL DAWG™ Belt Cleaner

MARTIN® BULL DAWG™ Belt Cleaner

BEL-ad77fc

Enhance conveyor cleaning efficiency with MARTIN® BULL DAWG™ Belt Cleaner - reliable performance, reduced costs.

$599.99
$599.99
Sale

Initiate Order

MARTIN® BULL DAWG™ Belt Cleaner

MARTIN® BULL DAWG™ Belt Cleaner

$599.99

Quantity: 1

Claim Your Seller Account

MARTIN® BULL DAWG™ Belt Cleaner

MARTIN® BULL DAWG™ Belt Cleaner

$599.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience exceptional cleaning with the MARTIN® BULL DAWG™ Belt Cleaner. Whether used as a pre-cleaner, secondary cleaner, or standalone solution, this belt cleaner ensures aggressive performance, reducing conveyor clean-up costs significantly. With dimensions optimized for various belt widths and a blade designed with tungsten carbide for extended wear life, this cleaner offers versatile mounting options, making it suitable for multiple-cleaner systems or standalone use. Embrace efficiency and reliability with the MARTIN® BULL DAWG™ Belt Cleaner, the ultimate choice for maintaining conveyor system cleanliness.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

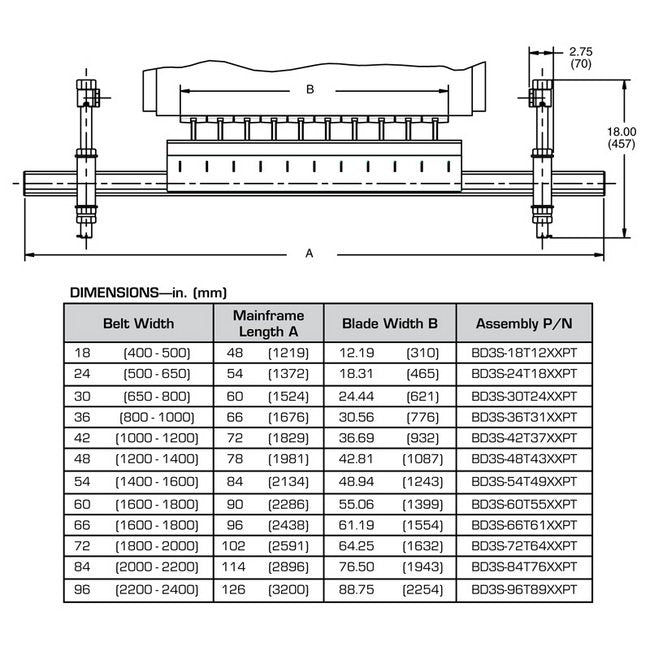

Dimensions Belt Width
18 in | 400 to 500 mm
Dimensions Blade Width B
12.19 in | 310 mm
Dimensions Mainframe Length A
48 in | 1219 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
Clamps Included
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Mounting Locations
The MARTIN® BULL DAWG™ Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG™ Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Standard Block
