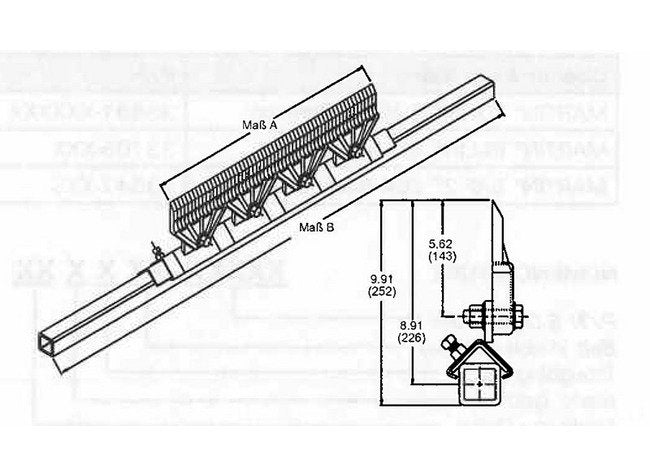

  • MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades - Image 2
  • MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades - Image 3
1 3
Airmatic →

MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades

MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades

BEL-e4d725

Effectively remove carryback with the MARTIN® IN-LINE Chevron Belt Cleaner featuring urethane blades and adjustable tensioner.

$699.99
$699.99
Sale

Initiate Order

MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades

MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades

$699.99

Quantity: 1

Claim Your Seller Account

MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades

MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® IN-LINE Chevron Belt Cleaner features rubber or urethane blades designed to effectively eliminate carryback while delicately traversing belts with ribs, chevrons, and cleats. Equipped with the MARTIN® TORSION ARM™ technology with 30º-offset arms, this cleaner is ideal for environments with stringy materials like vines, wire, or bark that could potentially catch on the cleaner arms. Noteworthy specifications include a sturdy construction suitable for belt widths ranging from 36 inches to 800-1000 mm, a blade wear life of 2 inches, and an orange urethane color for visibility and durability. For optimal performance, pair it with the recommended Reversing Mount Spring Tensioner.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Belt Width
36 in | 800 to 1000 mm
Dimensions Blade Width A
35 in | 889 mm
Dimensions Max Mainframe Length
66 in | 1676 mm
Dimensions Of Blades
5
Dimensions Shipping Weight
78 lb | 35.40 kg
Specifications Blade Type
Urethane
Specifications Blade Wear Life
2 in | 50 mm
Specifications Max Belt Speed
500 fpm | 2.50 m/s
Specifications Max Height
0.50 in | 13 mm
Specifications Max Service Constant Temperature
150 ºF | 65 ºC
Specifications Max Service Intermittent Temperature
180 ºF | 82 ºC
Specifications Mounting Radius
4 in | 102 mm
Specifications Recommended Tensioner
Reversing Mount Spring Tensioner
Specifications Urethane Color
Orange
