The MARTIN® ORION Belt Cleaning System is an innovative solution designed to tackle tough conveyor cleaning challenges. This system incorporates three powerful belt cleaners to effectively remove carryback material and water, ensuring optimal belt performance. With specialized mounts and tensioners, installation and maintenance are simplified, tailored to meet your specific requirements. The dual-mainframe mount option maximizes cleaning efficiency in minimal space. Engineered for durability and reliability, this system is ideal for demanding industrial applications both above and below ground.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Options Additional Options
Optional Water Spray Bar (Fit any or all cleaners with water spray system to improve cleaning efficiency and dust control.)
Components Of Components Included

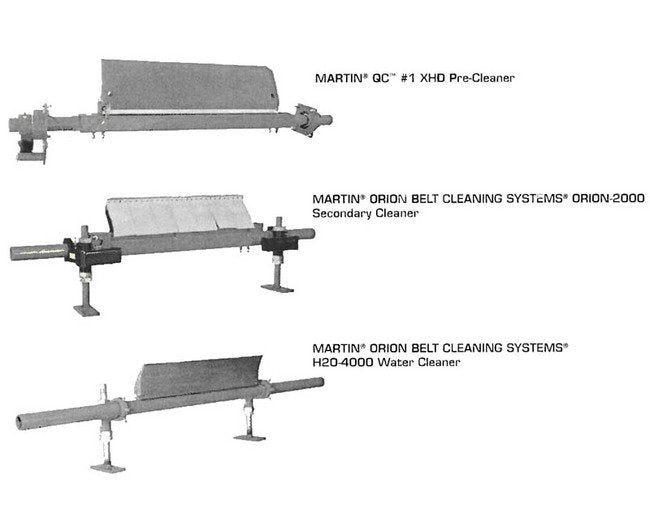

(1) MARTIN® Orion Belt Cleaning Systems® H20-4000 Water Cleaner Single Assembly | (1) MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt Cleaner Assembly | (1) MARTIN® QC⢠#1; XHD Pre-Cleaner Assembly
Dimensions Belt Width
36 in
Specifications Major Components
MARTIN® QC⢠#1; XHD Pre-CleanerThe "constant-angle" design of this sturdy urethane pre-cleaner provides consistent cleaning over the life of the blade. An extra heavy-duty spring tensioner allows direct pressure to the ure thane blade to shed the overburden of adhered material from the belt. Blade change is a simple "one-pin" procedure.MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt CleanerIndividually adjustable tungsten carbide blades precisely remove sticky fines from the belt. Blade segments are individually cush ioned with engineered torsion springs to flex away from the belt for splice passage.MARTIN® Orion Belt Cleaning Systems® H20-4000 Water CleanerSoft urethane blade squeegees the belt for effective removal of residual material and moisture from grooves and cuts in cover, drying the belt.
Specifications System
Single
