MARTIN® QC™ #2 Secondary Belt Cleaner
MARTIN® QC™ #2 Secondary Belt Cleaner
SKU:BEL-cd506c
Efficiently clean belts with MARTIN® QC™ #2 Secondary Belt Cleaner. Durable blades, easy maintenance, and belt protection.
Regular price
$382.99
Regular price
Sale price
$382.99
Unit price
per
Initiate Order
MARTIN® QC™ #2 Secondary Belt Cleaner
$382.99
Quantity: 1
Claim Your Seller Account
MARTIN® QC™ #2 Secondary Belt Cleaner
$382.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® QC™ #2 Secondary Belt Cleaner is designed for belt widths ranging from 18" to 96" and offers efficient cleaning at high belt speeds up to 1000 FPM. Featuring a unique teardrop-shaped blade profile and dual linear Spring Tensioners, this cleaner ensures effective cleaning performance while remaining cost-effective. The one-pin blade replacement system and tungsten carbide, stainless steel, or ceramic blade tips contribute to its durability and low maintenance costs. With built-in features to prevent belt damage and shock absorption, this secondary cleaner is a reliable and long-lasting solution for conveyor systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Benefits 0
Fast Return on InvestmentIntegrated cleaner and tensioner system provides effective cleaning without a high price tag, providing a prompt payback.Maintains Effective CleaningIndividual 3 inch (76 mm) wide blades independently conform to profile of moving belt. Saves on Maintenance ExpensesTungsten carbide blade tips last a long time, reducing costs for service downtime, labor, and replacement parts. Cuts Blade Service CostsBlade change is a fast and easy, one-pin procedure. Blades are preloaded onto a belt-width cartridge, so one worker can quickly replace blade.Won't Damage Belt on SpliceSystem absorbs splice shock to safeguard belt, splice, and cleaner. Linear relief is built into the spring tensioner; urethane blades absorb radial shock.
Dimensions Belt Width
72 in
Dimensions Blade Width C
69 in | 1753 mm
Dimensions Dimension B
70.50 in | 1791 mm
Dimensions Mainframe Length A
102 in | 2591 mm
Dimensions Weight
114.30 lb | 51.80 kg
Notes 0

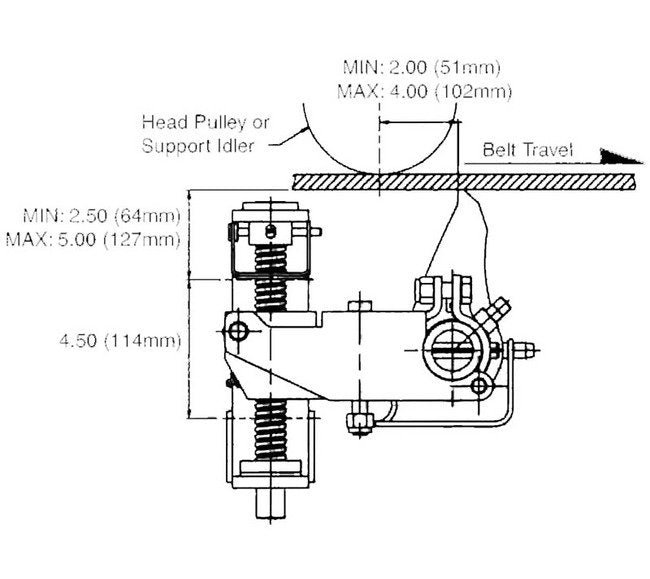

OrderingBlade coverage is belt width minus 3 inches (76 mm). To protect belt edges, first blade on each end of cleaner assembly does not have tungsten carbide tip.ApplicationMartin Engineering recommends that the MARTIN® QC⢠#2; Secondary Belt Cleaning System be installed so the cleaning blade contacts the belt at a point 2 to 4 inches (51 to 102 mm) after the point where the belt leaves the head (discharge) pulley. If obstructions prevent installation at this point, or if additional cleaners are desired, the cleaner should be installed 2 to 4 inches (51 to 102 mm) past the point where the belt leaves the support idler.See your Martin Engineering representative for more infor mation, or visit www.martin-eng.com.
Specifications Blade Type
Tungsten Carbide
Specifications Door Type
No Door
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Max Service Constant Temperature
-20 to 160 ºF | -29 to 71 ºC
Specifications Tensioner Type
MARTIN® QC⢠#2; Spring Tensioner
Specifications Urethane Color
Green
Specifications Wear Life
0.5 in | 13 mm
