MARTIN® QC™ #2 Secondary Belt Cleaner
MARTIN® QC™ #2 Secondary Belt Cleaner
SKU:BEL-b71826
Efficient, cost-effective MARTIN® QC™ #2 Secondary Belt Cleaner for 18-96" belts, with one-pin blade replacement & tungsten carbide tips.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
MARTIN® QC™ #2 Secondary Belt Cleaner
$849.99
Quantity: 1
Claim Your Seller Account
MARTIN® QC™ #2 Secondary Belt Cleaner
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® QC™ #2 Secondary Belt Cleaner offers efficient cleaning performance at a cost-effective price point. With a unique teardrop-shaped blade profile and dual linear Spring Tensioners, this cleaner ensures thorough belt cleaning. The innovative one-pin blade replacement feature and individual 3-inch wide blades that conform to the belt profile simplify maintenance. Choose from tungsten carbide, stainless steel, or ceramic blade tips for extended wear life and reduced service costs. Additionally, the system's design prevents belt damage at splice points. Ideal for belt widths ranging from 18 to 96 inches and belt speeds up to 1000 FPM.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Benefits 0
Fast Return on InvestmentIntegrated cleaner and tensioner system provides effective cleaning without a high price tag, providing a prompt payback.Maintains Effective CleaningIndividual 3 inch (76 mm) wide blades independently conform to profile of moving belt. Saves on Maintenance ExpensesTungsten carbide blade tips last a long time, reducing costs for service downtime, labor, and replacement parts. Cuts Blade Service CostsBlade change is a fast and easy, one-pin procedure. Blades are preloaded onto a belt-width cartridge, so one worker can quickly replace blade.Won't Damage Belt on SpliceSystem absorbs splice shock to safeguard belt, splice, and cleaner. Linear relief is built into the spring tensioner; urethane blades absorb radial shock.
Dimensions Belt Width
96 in
Dimensions Blade Width C
93 in | 2362 mm
Dimensions Dimension B
94.50 in | 2400 mm
Dimensions Mainframe Length A
126 in | 3200 mm
Dimensions Weight
140.60 lb | 63.80 kg
Notes 0

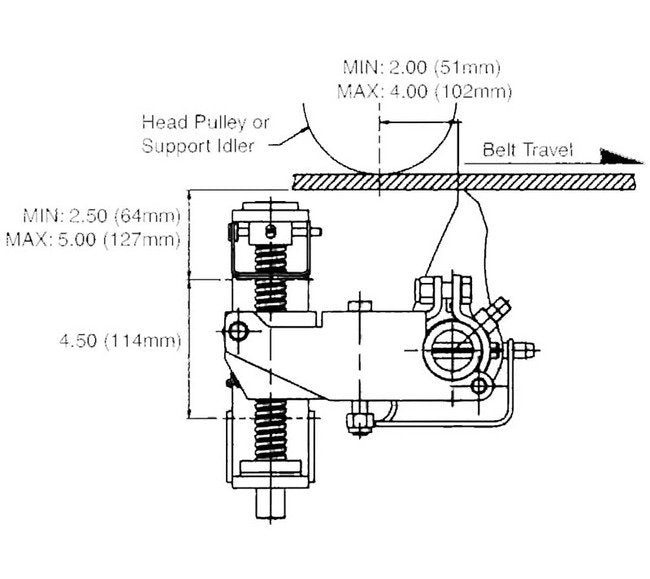

OrderingBlade coverage is belt width minus 3 inches (76 mm). To protect belt edges, first blade on each end of cleaner assembly does not have tungsten carbide tip.ApplicationMartin Engineering recommends that the MARTIN® QC⢠#2; Secondary Belt Cleaning System be installed so the cleaning blade contacts the belt at a point 2 to 4 inches (51 to 102 mm) after the point where the belt leaves the head (discharge) pulley. If obstructions prevent installation at this point, or if additional cleaners are desired, the cleaner should be installed 2 to 4 inches (51 to 102 mm) past the point where the belt leaves the support idler.See your Martin Engineering representative for more infor mation, or visit www.martin-eng.com.
Specifications Blade Type
Ceramic
Specifications Door Type
MARTIN® CYA⢠Door
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Max Service Constant Temperature
-20 to 160 ºF | -29 to 71 ºC
Specifications Tensioner Type
MARTIN® QC⢠#2; Spring Tensioner
Specifications Urethane Color
Orange
Specifications Wear Life
0.5 in | 13 mm
