MARTIN® TRACKER™ Belt Tracking System
MARTIN® TRACKER™ Belt Tracking System
SKU:BEL-9895f2
Prevent spillage and maintain belt alignment with MARTIN® TRACKER™ Belt Tracking System. Immediate steering correction for a smooth operation.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
MARTIN® TRACKER™ Belt Tracking System
$1,299.99
Quantity: 1
Claim Your Seller Account
MARTIN® TRACKER™ Belt Tracking System
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ensure precise belt alignment and prevent spillage with the MARTIN® TRACKER™ Belt Tracking System. This innovative system offers immediate and continuous steering for correcting belt paths, reducing equipment damage, and minimizing downtime. Available in three models - Standard Duty for typical conditions, Heavy-Duty for high-speed and heavy load applications, and Extra Heavy-Duty for rugged environments. With upper and lower units adaptable to the return or carrying side of the conveyor, the MARTIN® TRACKER™ is designed to enhance operational efficiency while minimizing maintenance needs. Install with a rubber-covered steering roll for optimal performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions A
32.59 in | 828 mm
Duty Rating 0

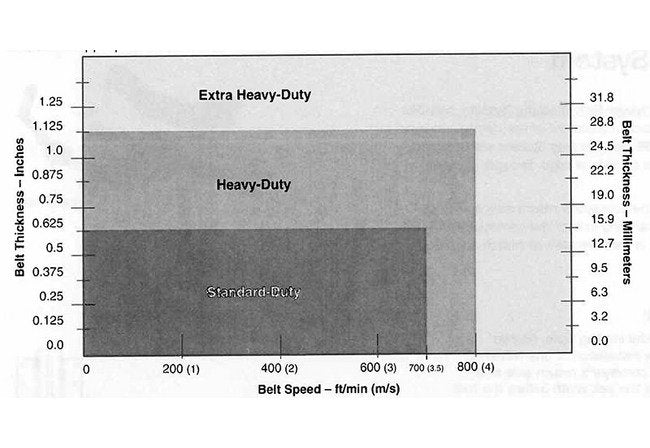

Standard Duty The MARTIN® TRACKER Standard Duty Tracking System is designed for applications under typical industrial material handling conditions. Heavy-Duty The MARTIN® TRACKER Heavy-Duty Tracking System is designed to withstand the stress associated with wider, thicker belts moving at higher speeds and carrying heavier loads. Extra Heavy-Duty The MARTIN® TRACKER Extra Heavy-Duty Tracking System is engineered to survive in the most rugged of applications.
Installation Guidelines 0
To keep the belt centered in the loading zone, Martin Engineering recommends the installation of one MARTIN® TRACKER Lower Unit on the conveyor's return side at a point approximately five times the belt width before the belt reaches the tail pulley. A MARTIN® TRACKER Upper Unit should be installed after the load zone on belts wider than 42 inches (1000 mm). Additional units may be needed to keep the belt tracking perfectly.
Notes 0
The steering roll on the MARTIN® TRACKER System must be supplied by the customer. Typically the steering roll is an existing customer roller that was removed from the conveyor to allow installation of the belt tracking system. The MARTIN® TRACKER Units work best with a rubber or rubber-covered steering roll. This MARTIN® TRACKER System is not suitable for reversing conveyors or belts with substantial rollback. For reversing applications contact Martin Engineering.
Specifications Belt Width
60 in | 1500 to 1800 mm
Specifications Duty Rating
Heavy-Duty
Specifications Shipping Weight
207 lb | 94 kg
Specifications Unit Type
Upper
