MARTIN® IN-LINE Chevron Belt Cleaner for Stringy Materials

MARTIN® IN-LINE Chevron Belt Cleaner for Stringy Materials

BEL-96ccbd

Efficiently clean conveyor belts of stringy materials with the MARTIN® IN-LINE Chevron Belt Cleaner. Ideal for vines, wire, or bark. Enhance productivity and reduce clean-up costs.

$899.00
$899.00
Sale

Initiate Order

MARTIN® IN-LINE Chevron Belt Cleaner for Stringy Materials

MARTIN® IN-LINE Chevron Belt Cleaner for Stringy Materials

$899.00

Quantity: 1

Claim Your Seller Account

MARTIN® IN-LINE Chevron Belt Cleaner for Stringy Materials

MARTIN® IN-LINE Chevron Belt Cleaner for Stringy Materials

$899.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

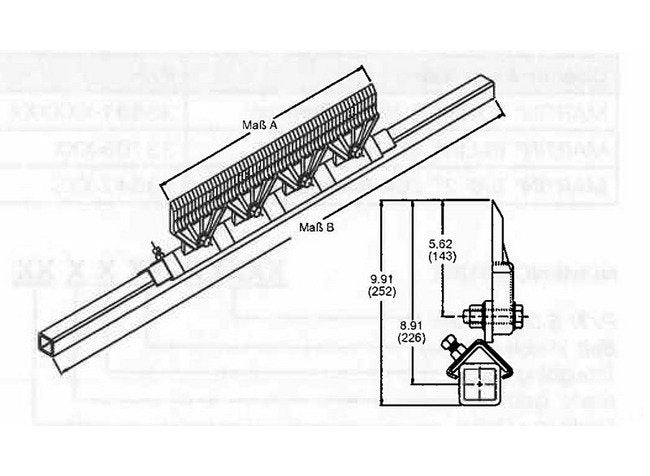

The MARTIN® IN-LINE Chevron Belt Cleaner is designed with rubber or urethane blades specifically to tackle stringy materials such as vines, wire, or bark that can catch on traditional cleaners. With the MARTIN® TORSION ARM™ incorporating 30º-offset arms, this cleaner not only completely removes carryback but also effectively navigates over belts with ribs, chevrons, and cleats. The assembly, excluding the tensioner, boasts dimensions of Belt Width: 72 in, Max. Mainframe Length: 102 in, Blade Width: 70 in, making it ideal for belts ranging from 1800 to 2000 mm wide. This cleaner ensures a clean and efficient conveyor system, reducing clean-up costs and increasing overall productivity.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Belt Width
72 in | 1800 to 2000 mm
Dimensions Blade Width A
70 in | 1778 mm
Dimensions Max Mainframe Length
102 in | 2591 mm
Dimensions Of Blades
10
Dimensions Shipping Weight
130 lb | 59 kg
Specifications Blade Type
Urethane
Specifications Blade Wear Life
2 in | 50 mm
Specifications Max Belt Speed
500 fpm | 2.50 m/s
Specifications Max Height
0.50 in | 13 mm
Specifications Max Service Constant Temperature
150 ºF | 65 ºC
Specifications Max Service Intermittent Temperature
180 ºF | 82 ºC
Specifications Mounting Radius
4 in | 102 mm
Specifications Recommended Tensioner
Reversing Mount Spring Tensioner
Specifications Urethane Color
Brown
