MARTIN® ORION Triple Belt Cleaning System

MARTIN® ORION Triple Belt Cleaning System

BEL-7f8803

Revolutionary triple belt cleaning system for efficient material and water removal, with easy installation and maintenance.

$3,999.99
$3,999.99
Sale

Initiate Order

MARTIN® ORION Triple Belt Cleaning System

MARTIN® ORION Triple Belt Cleaning System

$3,999.99

Quantity: 1

Claim Your Seller Account

MARTIN® ORION Triple Belt Cleaning System

MARTIN® ORION Triple Belt Cleaning System

$3,999.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® ORION Triple Belt Cleaning System is a revolutionary solution that combines three robust belt cleaners engineered to excel in challenging conditions. Designed for both above and below-ground operations, this system efficiently removes carryback material and water from the belt. Featuring specialized mounts and tensioners, installation and maintenance are simplified to match your specific system requirements. The dual-mainframe mount option allows for multiple cleaners in minimal space, maximizing efficiency and cleanliness.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Options Additional Options
Optional Water Spray Bar (Fit any or all cleaners with water spray system to improve cleaning efficiency and dust control.)
Components Of Components Included

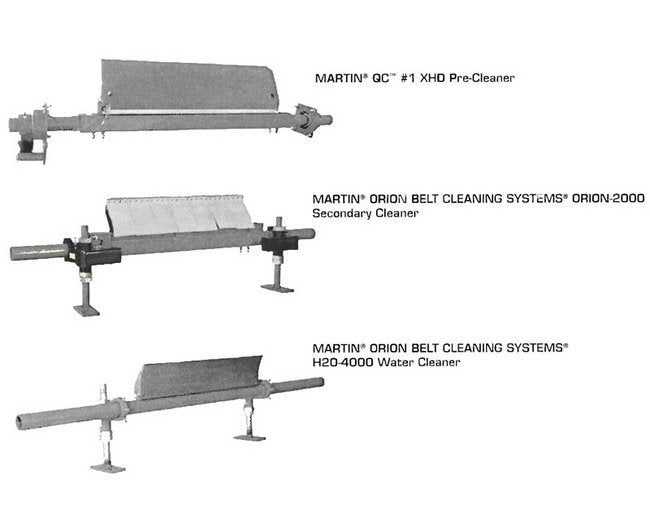

(1) MARTIN® Orion Belt Cleaning Systems® H20-4000 Water Cleaner Dual Assembly | (1) MARTIN® QC™ #1; XHD Pre-Cleaner Assembly | (2) MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt Cleaner Assembly
Dimensions Belt Width
48 in
Specifications Major Components
MARTIN® QC™ #1; XHD Pre-CleanerThe "constant-angle" design of this sturdy urethane pre-cleaner provides consistent cleaning over the life of the blade. An extra heavy-duty spring tensioner allows direct pressure to the ure thane blade to shed the overburden of adhered material from the belt. Blade change is a simple "one-pin" procedure.MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt CleanerIndividually adjustable tungsten carbide blades precisely remove sticky fines from the belt. Blade segments are individually cush ioned with engineered torsion springs to flex away from the belt for splice passage.MARTIN® Orion Belt Cleaning Systems® H20-4000 Water CleanerSoft urethane blade squeegees the belt for effective removal of residual material and moisture from grooves and cuts in cover, drying the belt.
Specifications System
Double
