MARTIN® QC™ #2 Secondary Cleaner System
MARTIN® QC™ #2 Secondary Cleaner System
SKU:BEL-487504
Efficient belt cleaning system with teardrop-shaped blades and revolutionary one-pin blade replacement for cost-effective maintenance and extended wear life.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
MARTIN® QC™ #2 Secondary Cleaner System
$799.99
Quantity: 1
Claim Your Seller Account
MARTIN® QC™ #2 Secondary Cleaner System
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® QC™ #2 Secondary Cleaner System offers efficient belt cleaning with its unique teardrop-shaped blades and dual linear Spring Tensioners. With one-pin blade replacement, this system ensures easy maintenance and extended wear life with blade tip options including tungsten carbide, stainless steel, or ceramic. Designed for belt widths from 18" to 96" and a max belt speed of 1000 FPM, this system is a cost-effective solution that delivers fast ROI, maintains effective cleaning, reduces maintenance expenses, and safeguards belt integrity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Benefits 0
Fast Return on InvestmentIntegrated cleaner and tensioner system provides effective cleaning without a high price tag, providing a prompt payback.Maintains Effective CleaningIndividual 3 inch (76 mm) wide blades independently conform to profile of moving belt. Saves on Maintenance ExpensesTungsten carbide blade tips last a long time, reducing costs for service downtime, labor, and replacement parts. Cuts Blade Service CostsBlade change is a fast and easy, one-pin procedure. Blades are preloaded onto a belt-width cartridge, so one worker can quickly replace blade.Won't Damage Belt on SpliceSystem absorbs splice shock to safeguard belt, splice, and cleaner. Linear relief is built into the spring tensioner; urethane blades absorb radial shock.
Dimensions Belt Width
66 in
Dimensions Blade Width C
63 in | 1600 mm
Dimensions Dimension B
64.50 in | 1638 mm
Dimensions Mainframe Length A
96 in | 2438 mm
Dimensions Weight
107.80 lb | 48.90 kg
Notes 0
OrderingBlade coverage is belt width minus 3 inches (76 mm). To protect belt edges, first blade on each end of cleaner assembly does not have tungsten carbide tip.ApplicationMartin Engineering recommends that the MARTIN® QC⢠#2; Secondary Belt Cleaning System be installed so the cleaning blade contacts the belt at a point 2 to 4 inches (51 to 102 mm) after the point where the belt leaves the head (discharge) pulley. If obstructions prevent installation at this point, or if additional cleaners are desired, the cleaner should be installed 2 to 4 inches (51 to 102 mm) past the point where the belt leaves the support idler.See your Martin Engineering representative for more infor mation, or visit www.martin-eng.com.
Specifications Blade Type
Tungsten Carbide
Specifications Door Type
No Door
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Max Service Constant Temperature
-20 to 160 ºF | -29 to 71 ºC
Specifications Tensioner Type
MARTIN® QC⢠#2; Spring Tensioner

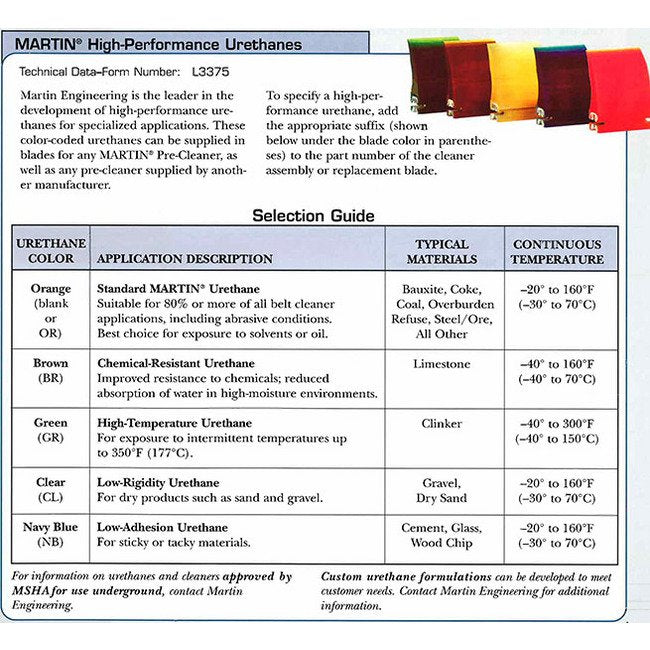

Specifications Urethane Color
Brown
Specifications Wear Life
0.5 in | 13 mm
