MARTIN® Rubber Inspection Doors
MARTIN® Rubber Inspection Doors
SKU:BEL-74d133
Swift access to conveyor components with MARTIN® Rubber Inspection Doors. Dust-tight seal, space-efficient design, and versatile applications. ANSI & ISO compliant.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MARTIN® Rubber Inspection Doors
$349.99
Quantity: 1
Claim Your Seller Account
MARTIN® Rubber Inspection Doors
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

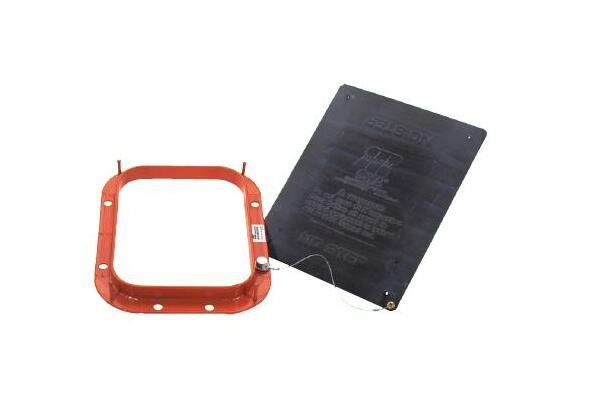

The MARTIN® Rubber Inspection Doors offer quick and easy access to belt cleaners and components within chutes and enclosures. Designed with a dust-tight seal, engineered for tight spaces, and simple installation, these doors come in various dimensions and materials to match specific conditions. Compliant with ANSI B.20.1 1984 and ISO 1819-02.1.11 standards, these doors ensure efficient maintenance and inspection processes.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application Guidelines 0

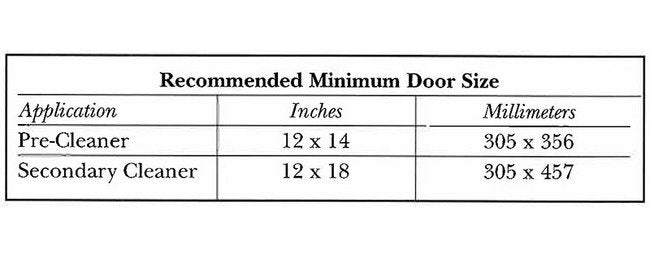

Martin Engineering recommends a minimum door size of 12 x 14 in. (305 x 356 mm) for pre-cleaners12 x 18 in. (305 x 457 mm) for secondary cleaners Other options, including food-grade rubber and/or stainless steel frame are available. See your Martin Engineering representative.
Benefits 0
Dust-Tight Seal"Snap-on" rubber doors form tight seal to contain dust and fines.Works in Tight SpacesOpens in less than 2.5 inches (65 mm) clearance for access in obstructed areas. Options to Fit ConditionsMaterials to match conditions, including high-temperature or food-grade applications. Optional inspection screen controls access when door is open; complies with ANSI B.20.1 1984 and ISO 1819-02.1.11. Simple Installation Door can be bolted or welded to enclosure wall. Matches Your ApplicationFive sizes available, from 9 x 12 to 24 x 24 inches (229 x 305 to 610 x 610 mm).Round MARTIN® POKE-HOLE⢠Doors also available.

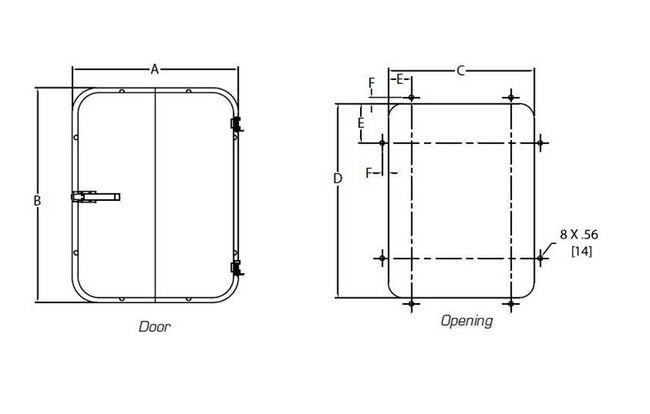

Dimensions Dimension A
11.25 in | 286 mm
Dimensions Dimension B
14.38 in | 365 mm
Dimensions Dimension C
8.75 in | 222 mm
Dimensions Dimension D
11.88 in | 302 mm
Dimensions Dimension E
2.81 in | 71 mm
Dimensions Dimension F
0.75 in | 19 mm
Dimensions Door Size Width X Height
9 x 12 in | 229 x 305 mm
Dimensions Shipping Weight
8 lb | 3.60 kg
Specifications Door Frame Material
304 Stainless Steel
Specifications Door Temperature Range
Standard Rubber Door
Specifications Mounting Hardware
w/ Mounting Hardware
Specifications Safety Screen
w/o Safety Screen
