MARTIN® Spiral Brush Belt Cleaner - Efficient Conveyor Cleaning Solution

MARTIN® Spiral Brush Belt Cleaner - Efficient Conveyor Cleaning Solution

BEL-604fda

Efficiently clean conveyor belts with MARTIN® Spiral Brush Belt Cleaner. High-performance & cost-effective solution for carryback fines & fibers.

$2,899.99
$2,899.99
Sale

Initiate Order

MARTIN® Spiral Brush Belt Cleaner - Efficient Conveyor Cleaning Solution

MARTIN® Spiral Brush Belt Cleaner - Efficient Conveyor Cleaning Solution

$2,899.99

Quantity: 1

Claim Your Seller Account

MARTIN® Spiral Brush Belt Cleaner - Efficient Conveyor Cleaning Solution

MARTIN® Spiral Brush Belt Cleaner - Efficient Conveyor Cleaning Solution

$2,899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® Spiral Brush Belt Cleaner by Martin Engineering is a high-performance solution engineered to effectively remove carryback fines, fibers, and other residual materials from conveyor belts. Designed with durable angle iron and stainless steel components, this belt cleaner offers efficient operation with its electric motor and 5:1 speed reducer. The continuous spiral bristle design ensures thorough cleaning on dry fines adhering to belts with cleats, chevrons, or ribs, making it ideal for challenging applications. With a range of standard bristle options and robust construction, the MARTIN® Spiral Brush Belt Cleaner provides a cost-effective and reliable solution for institutional and industrial conveyor systems.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application Guidelines 0
Martin Engineering's Conveyor Belt Brush Cleaners are de signed for use in the secondary cleaning position. In other words, the recommended placement is at the point where the belt leaves the discharge pulley. (If that is not possible, the MARTIN® BRUSH Belt Cleaner may be mounted further along the conveyor's return run where it can be supported by an idler or pulley.) Installation of a precleaner on the face of the discharge pulley below the material stream is always recommended.
Benefits 0
Effective Cleaning Removes carryback fines and fibers with powered rotary action. Efficient Operation Efficient electric motor provides effective cleaning with out excessive power consumption. Economical SolutionEffective, yet low-cost answer to belt-borne residual material. Rugged ConstructionDurable angle iron and stainless steel components provide long service in tough conditions. High-Performance CleaningEffective cleaning performance on difficult applications, including belts with ribs, cleats, grooves, or chevrons, or belts carrying sticky materials or stringy fibers.

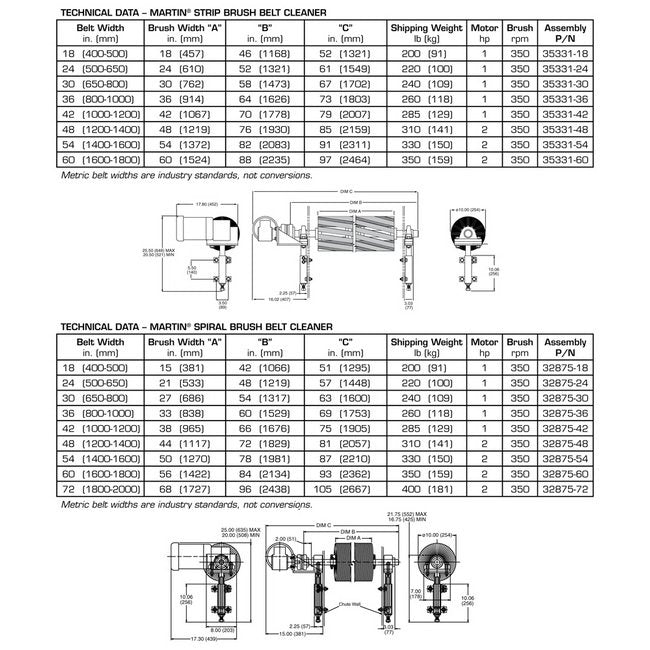

Dimensions Belt Width
36 in | 800 to 1000 mm
Dimensions Brush Rotation Speed
350 rpm
Dimensions Brush Width A
33 in | 838 mm
Dimensions Dimension B
60 in | 1529 mm
Dimensions Dimension C
69 in | 1753 mm
Dimensions Motor Hp
1
Dimensions Shipping Weight
260 lb | 118 kg
Specifications Electric Motor
230 / 460 V, 3-Phase, 60 Hz
Specifications Service Temperature
-20 to 180 ºF | -29 to 82 ºC
Specifications Speed Reducer
5:1 Reduction - 1 & 2 hp on MARTIN® Spiral and Strip Brush Belt Cleaners
Specifications Standard Bristle Diameter
0.038 in | 0.96 mm
Specifications Standard Bristle Length
4 in | 102 mm
Specifications Standard Bristle Material
Polypropylene
When To Use 0
Belts carrying dry, dusty, crumbled materials that read ily release from bristles. Available in "low-profile" version and in wider constructions for challenging applications.
