MARTIN® TORSION ARM™ Chevron Belt Cleaner - Conveyor Belt Cleaning Solution

MARTIN® TORSION ARM™ Chevron Belt Cleaner - Conveyor Belt Cleaning Solution

BEL-4469cc

Efficiently clean conveyor belts with MARTIN® TORSION ARM™ Chevron Belt Cleaner for optimal performance and reduced maintenance costs.

$699.99
$699.99
Sale

Initiate Order

MARTIN® TORSION ARM™ Chevron Belt Cleaner - Conveyor Belt Cleaning Solution

MARTIN® TORSION ARM™ Chevron Belt Cleaner - Conveyor Belt Cleaning Solution

$699.99

Quantity: 1

Claim Your Seller Account

MARTIN® TORSION ARM™ Chevron Belt Cleaner - Conveyor Belt Cleaning Solution

MARTIN® TORSION ARM™ Chevron Belt Cleaner - Conveyor Belt Cleaning Solution

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® TORSION ARM™ Chevron Belt Cleaner is a state-of-the-art solution designed for efficiently removing carryback on conveyor belts with ribs, chevrons, and cleats. Featuring rubber or urethane blades, this cleaner gently glides over the belts to ensure thorough cleaning while avoiding damage. The 30° offset arms and telescoping ends eliminate the need for mainframe cutting during installation, offering convenience and flexibility. With a blade wear life of 2 inches and a max belt speed of 500 fpm, this cleaner ensures enhanced conveyor performance and reduced maintenance costs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

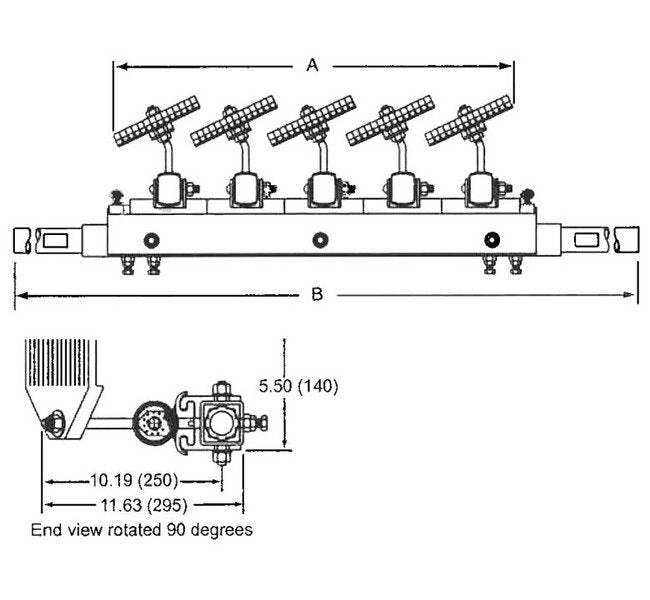

Dimensions Belt Width
18 in | 400 to 500 mm
Dimensions Blade Width A
12.5 in | 318 mm
Dimensions Max Mainframe Length
43 in | 1092 mm
Dimensions Of Blades
2
Dimensions Shipping Weight
55 lb | 24.9 kg
Specifications Arm Angle
Left
Specifications Blade Type
Urethane
Specifications Blade Wear Life
2 in | 50 mm
Specifications Max Belt Speed
500 fpm | 2.50 m/s
Specifications Max Height
0.50 in | 13 mm
Specifications Max Service Constant Temperature
150 ºF | 65 ºC
Specifications Max Service Intermittent Temperature
180 ºF | 82 ºC
Specifications Mounting Radius
4 in | 102 mm
Specifications Recommended Tensioner
MARTIN® TWIST™ Tensioner
Specifications Urethane Color
Green
