MARTIN® TORSION ARM™ Chevron Belt Cleaner for Enhanced Conveyor Clean-Up

MARTIN® TORSION ARM™ Chevron Belt Cleaner for Enhanced Conveyor Clean-Up

BEL-1071f2

Enhance conveyor performance with MARTIN® TORSION ARM™ Chevron Belt Cleaner, featuring urethane blades and telescoping ends for easy installation and efficient carryback removal.

$1,299.99
$1,299.99
Sale

Initiate Order

MARTIN® TORSION ARM™ Chevron Belt Cleaner for Enhanced Conveyor Clean-Up

MARTIN® TORSION ARM™ Chevron Belt Cleaner for Enhanced Conveyor Clean-Up

$1,299.99

Quantity: 1

Claim Your Seller Account

MARTIN® TORSION ARM™ Chevron Belt Cleaner for Enhanced Conveyor Clean-Up

MARTIN® TORSION ARM™ Chevron Belt Cleaner for Enhanced Conveyor Clean-Up

$1,299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® TORSION ARM™ Chevron Belt Cleaner is an innovative solution for efficient carryback removal on conveyor belts with ribs, chevrons, and cleats. Featuring 30° offset arms for optimal performance, this cleaner uses urethane blades that gently clean while preventing material build-up. With telescoping ends for easy installation without the need for frame cutting, it offers hassle-free maintenance. Ideal for diverse applications, this cleaner ensures reliable belt cleaning while reducing clean-up costs and maintaining operational efficiency.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Belt Width
96 in | 2200 to 2400 mm

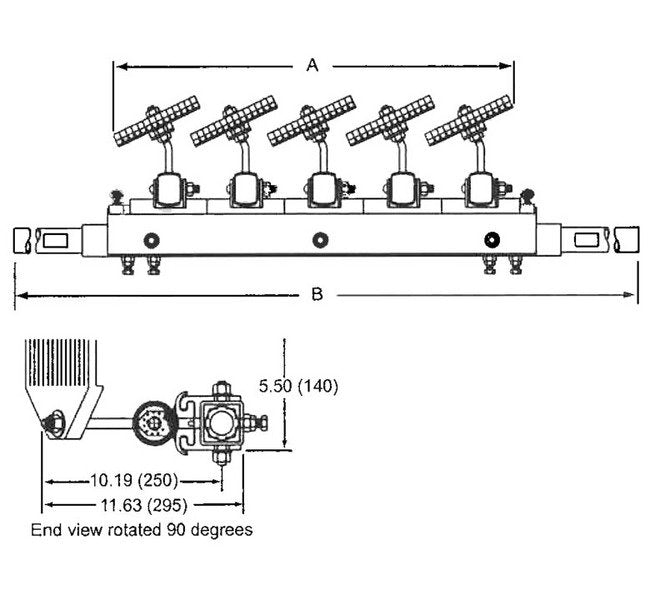

Dimensions Blade Width A
90.5 in | 2299 mm
Dimensions Max Mainframe Length
135 in | 3434 mm
Dimensions Of Blades
15
Dimensions Shipping Weight
165 lb | 74.80 kg
Specifications Arm Angle
Left
Specifications Blade Type
Urethane
Specifications Blade Wear Life
2 in | 50 mm
Specifications Max Belt Speed
500 fpm | 2.50 m/s
Specifications Max Height
0.50 in | 13 mm
Specifications Max Service Constant Temperature
150 ºF | 65 ºC
Specifications Max Service Intermittent Temperature
180 ºF | 82 ºC
Specifications Mounting Radius
4 in | 102 mm
Specifications Recommended Tensioner
MARTIN® TWIST™ Tensioner
Specifications Urethane Color
Tan
