Matryx® Double Acting Vane Actuator MX

Matryx® Double Acting Vane Actuator MX

SKU:ACT-3a3966

Compact yet powerful vane actuator with precise rotation adjustment and fail-safe valve closure

Regular price $699.99
Regular price Sale price $699.99
Sale

Initiate Order

Matryx® Double Acting Vane Actuator MX

Matryx® Double Acting Vane Actuator MX

$699.99

Quantity: 1

Claim Your Seller Account

Matryx® Double Acting Vane Actuator MX

Matryx® Double Acting Vane Actuator MX

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

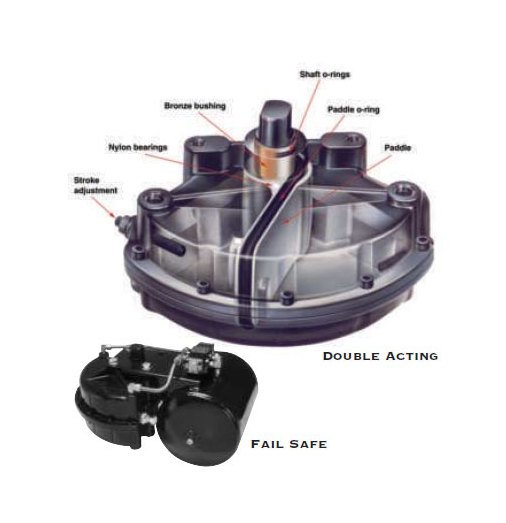

The Matryx® Vane Actuator MX offers exceptional performance in a robust die-cast aluminum housing. With a versatile operating pressure range of 40 to 120 PSIG and a temperature range from 0ºF to 225ºF, this actuator delivers powerful actuation in a compact and lightweight design. Featuring dual external travel stops for precise rotation adjustment and fail-safe models equipped with pneumatic accumulators, the Matryx® Vane Actuator ensures reliable valve closure under any conditions. Add optional features like limit switches, solenoid valves, and manual gear overrides for enhanced control and functionality.

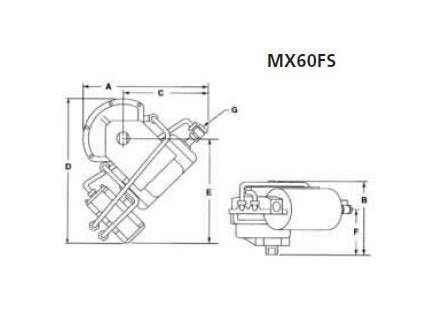

Product Specifications

Specifications Dimension A
8.94 in | 227 mm
Specifications Dimension B
5.88 in | 149 mm
Specifications Dimension C
5.69 in | 115 mm
Specifications Dimension D
11.18 in | 284 mm
Specifications Dimension E
8.00 in | 203 mm
Specifications Dimension F
3.50 in | 89 mm
Specifications Dimension G
1/4-18 NPT
Specifications Tank Volume
40 in³
Specifications Weight
18.0 lb | 8.0 kg
