Matryx® Vane Actuator MX

Matryx® Vane Actuator MX

SKU:ACT-03949d

Experience powerful actuation in a compact design with the Matryx® Vane Actuator MX, ideal for various applications. Meets institutional procurement standards.

Regular price $699.99
Regular price Sale price $699.99
Sale

Initiate Order

Matryx® Vane Actuator MX

Matryx® Vane Actuator MX

$699.99

Quantity: 1

Claim Your Seller Account

Matryx® Vane Actuator MX

Matryx® Vane Actuator MX

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

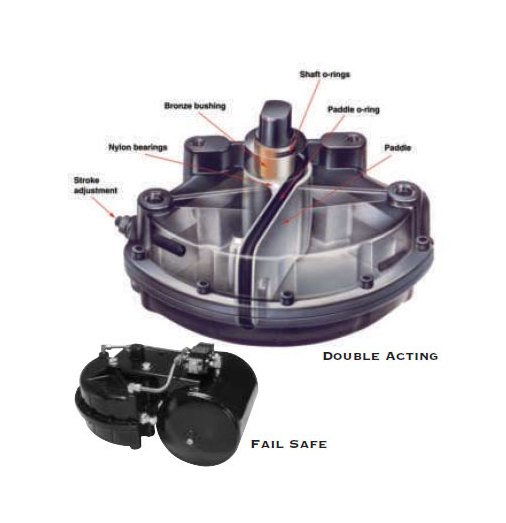

The Matryx® Vane Actuator MX offers exceptional performance for both consumer and institutional buyers. Featuring a die-cast aluminum housing, operating pressure of 40 to 120 PSIG, and a temperature range of 0ºF to 225ºF, this vane actuator delivers powerful actuation in a compact and lightweight design. With dual external travel stops allowing rotation adjustments and fail-safe models ensuring valve closure during supply pressure loss, it meets stringent institutional procurement standards. Optional features like limit switches, locking devices, and solenoid valves enhance its versatility and functionality.

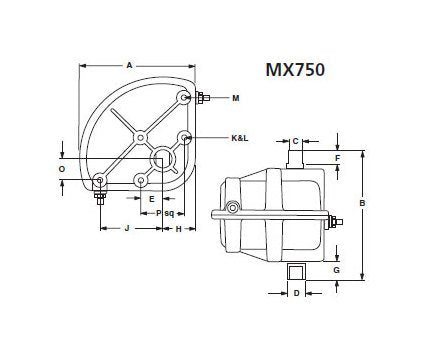

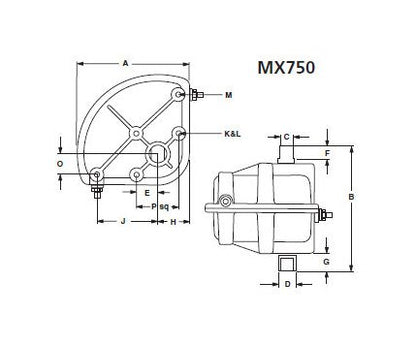

Product Specifications

Specifications Dimension A
9.31 in | 236 mm
Specifications Dimension B
10.50 in | 267 mm
Specifications Dimension C
1.13 in | 28.6 mm
Specifications Dimension D
1.44 in | 36.6 mm
Specifications Dimension E
1.75 in | 44 mm
Specifications Dimension F
1.13 in | 29 mm
Specifications Dimension G
1.50 in | 38 mm
Specifications Dimension H
2.63 in | 67 mm
Specifications Dimension J
5.00 in | 127 mm
Specifications Dimension K
1/2-13
Specifications Dimension L
0.75 in | 19 mm
Specifications Dimension M
1/4-18
Specifications Dimension O
1.75 in | 44 mm
Specifications Dimension P
3.50 in | 89 mm
Specifications Quantity Of K
3
Specifications Quantity Of M
4
Specifications Weight
18.0 lb | 8.2 kg
