Matryx® Vane Actuator MX - Compact Dual-Action Actuator

Matryx® Vane Actuator MX - Compact Dual-Action Actuator

SKU:ACT-77e29e

Matryx® Vane Actuator MX - Compact, lightweight, and versatile dual-action actuator for precision control in varied applications.

Regular price $279.99
Regular price Sale price $279.99
Sale

Initiate Order

Matryx® Vane Actuator MX - Compact Dual-Action Actuator

Matryx® Vane Actuator MX - Compact Dual-Action Actuator

$279.99

Quantity: 1

Claim Your Seller Account

Matryx® Vane Actuator MX - Compact Dual-Action Actuator

Matryx® Vane Actuator MX - Compact Dual-Action Actuator

$279.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

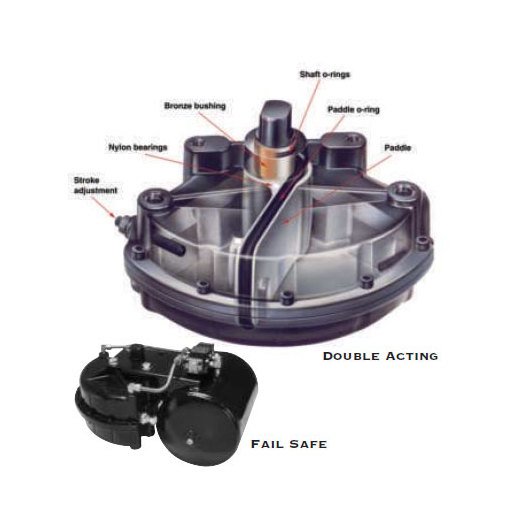

The Matryx® Vane Actuator MX offers exceptional performance with options for double acting and fail-safe versions. Crafted from die-cast aluminum, this compact and lightweight actuator operates within a wide pressure and temperature range. With only one moving part and dual external travel stops, it allows precise rotation adjustments. Optional features like limit switches, solenoid valves, and manual gear override enhance its versatility. Ideal for both consumer and institutional applications requiring reliable actuation.

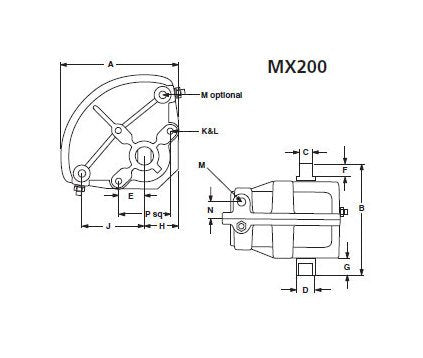

Product Specifications

Specifications Dimension A
6.94 in | 176 mm
Specifications Dimension B
6.56 in | 166 mm
Specifications Dimension C
0.75 in | 19 mm
Specifications Dimension D
1.06 in | 27 mm
Specifications Dimension E
1.50 in | 38 mm
Specifications Dimension F
0.75 in | 19 mm
Specifications Dimension G
1.00 in | 25 mm
Specifications Dimension H
2.13 in | 54 mm
Specifications Dimension J
3.62 in | 92 mm
Specifications Dimension K
3/8-16
Specifications Dimension L
0.56 in | 14 mm
Specifications Dimension M
1/4-18
Specifications Dimension N
0.94 in | 24 mm
Specifications Dimension P
3.00 in | 76 mm
Specifications Quantity Of K
3
Specifications Quantity Of M
4
Specifications Weight
7.0 lb | 3.2 kg
