Matryx® Vane Actuator MX Series
Matryx® Vane Actuator MX Series
SKU:ACT-a3da17
Powerful and versatile vane actuator series with Double Acting and Fail Safe options, ideal for precise valve control in demanding industrial settings.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Matryx® Vane Actuator MX Series
$349.99
Quantity: 1
Claim Your Seller Account
Matryx® Vane Actuator MX Series
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

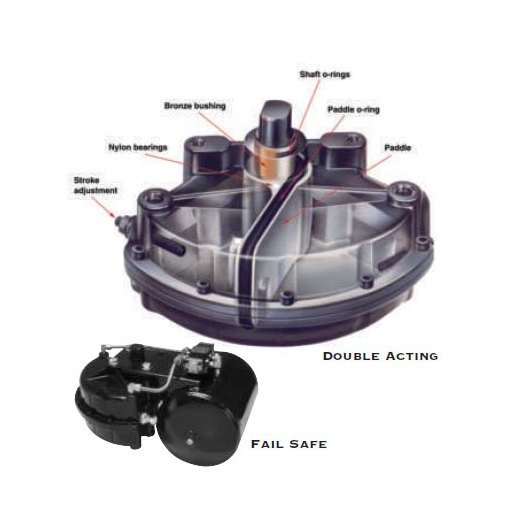

The Matryx® Vane Actuator MX Series offers both Double Acting and Fail Safe versions, delivering powerful actuation in a compact design. With die-cast aluminum housing, it operates at pressures of 40 to 120 PSIG and temperatures ranging from 0ºF to 225ºF. Featuring dual external travel stops for rotation adjustment, Fail Safe models ensure valve closure during supply pressure loss. Optional features like Limit Switch, Locking Device, and Solenoid Valve enhance functionality, making it a versatile choice for various applications.

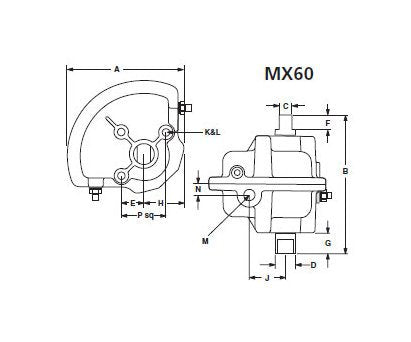

Product Specifications
Specifications Dimension A
4.87 in | 124 mm
Specifications Dimension B
5.88 in | 149 mm
Specifications Dimension C
0.56 in | 14.3 mm
Specifications Dimension D
0.87 in | 22.2 mm
Specifications Dimension E
0.94 in | 24 mm
Specifications Dimension F
0.63 in | 16 mm
Specifications Dimension G
0.91 in | 23 mm
Specifications Dimension H
1.69 in | 43 mm
Specifications Dimension J
1.50 in | 38 mm
Specifications Dimension K
5/16-18
Specifications Dimension L
0.50 in | 13 mm
Specifications Dimension M
1/4-18
Specifications Dimension N
0.50 in | 13 mm
Specifications Dimension P
1.88 in | 48 mm
Specifications Quantity Of K
3
Specifications Quantity Of M
2
Specifications Weight
3.0 lb | 1.4 kg
