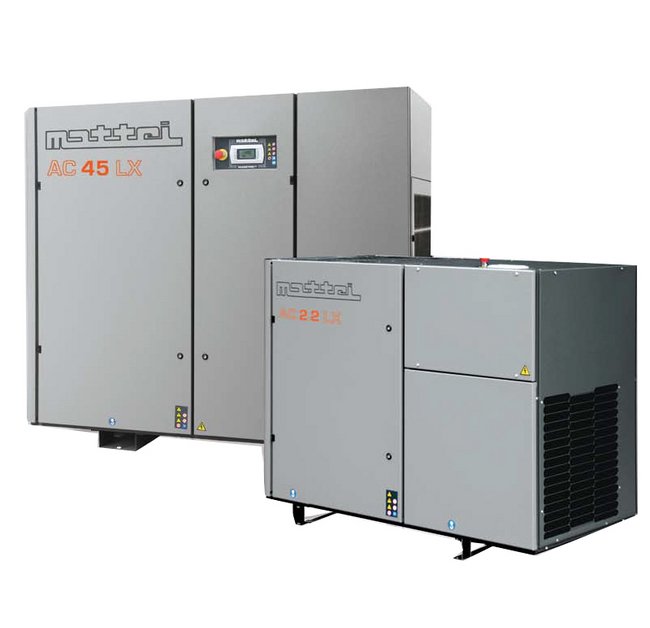

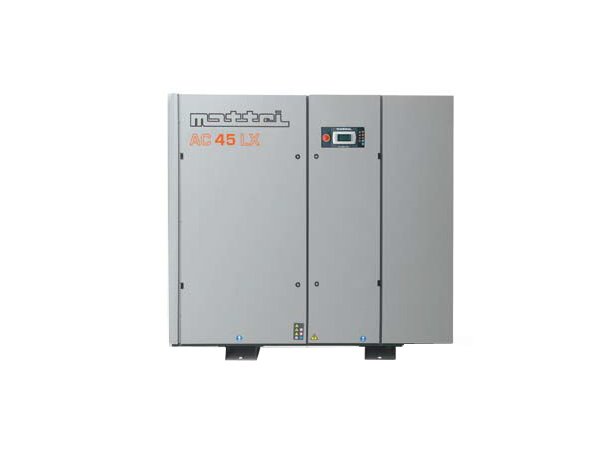

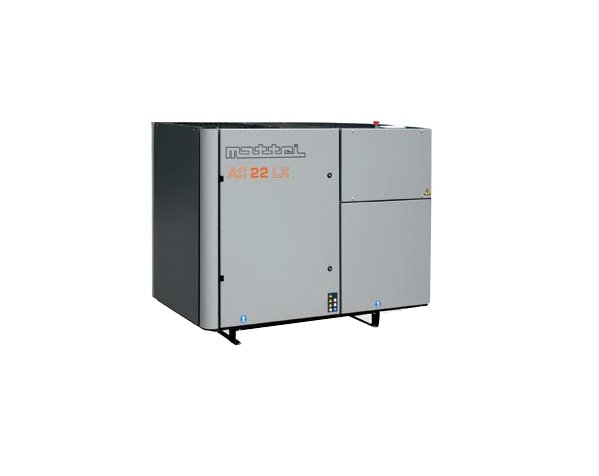

Mattei AC Series 60 HP Electric Motor Air Compressor
Mattei AC Series 60 HP Electric Motor Air Compressor
Achieve superior performance and energy efficiency with Mattei AC Series 60 HP Air Compressor. 10-year warranty, compliant with industry standards.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
Mattei AC Series 60 HP Electric Motor Air Compressor
$18,999.99
Quantity: 1
Claim Your Seller Account
Mattei AC Series 60 HP Electric Motor Air Compressor
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled performance and energy efficiency with the Mattei AC Series 60 HP Electric Motor Air Compressor. Engineered with advanced features like Electronic Controller, TEFC Motor, and Integrated Refrigerated Air Dryer, this compressor ensures unbeatable reliability and low maintenance. With a 10-year warranty and compliance with CAGI, ISO 9001:2001, and ULc Approval standards, the Mattei AC Series sets the benchmark for high-capacity air compressors in the industry.
Product Specifications

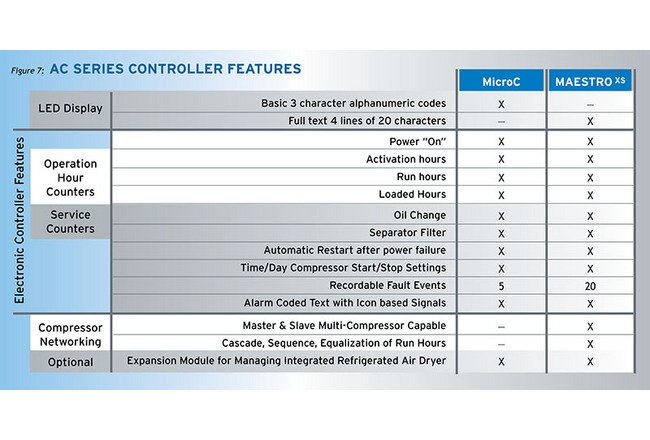

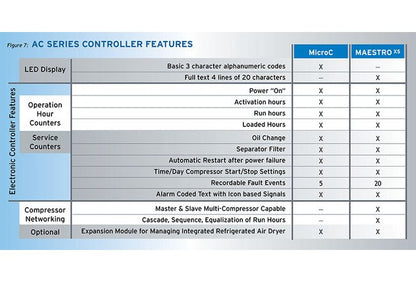

Ac Series Product Features Ac Series Option
Condensate Drain & Moisture Separator Kit | High Efficiency Air Intake Filter Kit | Integrated Heat Recovery Kit | Integrated Oil/Water Separator | Integrated Refrigerated Air Dryer | Soundproofing Intake Air Duct
Ac Series Product Features Compressor Networking Cascade Sequenc
MaestroXS Only
Ac Series Product Features Compressor Networking Master And Slav
MaestroXS Only
Ac Series Product Features Electronic Controller
MaestroXS | TEFC Motor | Wye-Delta Motor Starter
Ac Series Product Features Light Emitting Diode Led Display Basi
MicroC Only
Ac Series Product Features Light Emitting Diode Led Display Full
MaestroXS Only
Ac Series Product Features Operation Hour Counters Activation Ho
Both Models
Ac Series Product Features Operation Hour Counters Loaded Hours
Both Models
Ac Series Product Features Operation Hour Counters Power On
Both Models
Ac Series Product Features Operation Hour Counters Run Hours
Both Models
Ac Series Product Features Optional Expansion Module For Managin
Both Models
Ac Series Product Features Service Counters Alarm Coded Text Wit
Both Models
Ac Series Product Features Service Counters Automatic Restart Af
Both Models
Ac Series Product Features Service Counters Oil Change
Both Models
Ac Series Product Features Service Counters Recordable Fault Eve
20 for MaestroXS | 5 for MicroC
Ac Series Product Features Service Counters Separator Filter
Both Models
Ac Series Product Features Service Counters Timeday Compressor S
Both Models
Ac Series Product Features System Adaptable Air Inlet Controls
10,000 Hour Air/Oil Separator Filter Design | 100,000 Hour Airend Design Life | Automatic On Load/Off Load | Cleanable Oil Filter | Combined On/Off Load and Modulation | Constant Pressure Modulation | Direct-drive 1,800 rpm Airend | Synthetic Rotor Oil 8000
Additional Information 0
Mattei compressors are designed to give constant top performance 24 hours a day, every day of the year. Extremely rugged and reliable, AC Series is designed for outstanding performance and efficiency.Rely on AC Series for:Superior SCFM/HP performanceUnaltered performance through timeSystem friendly demand adaptable controlsAutomatic Load/No LoadLoad matching ModulationAutomatic with ModulationNo wear of the compressor's moving mechanical partsCompact designLow oil volume and consumptionDirect coupled compressor and motorSlow 1,800 RPM rotational speedLow maintenanceQuiet operation

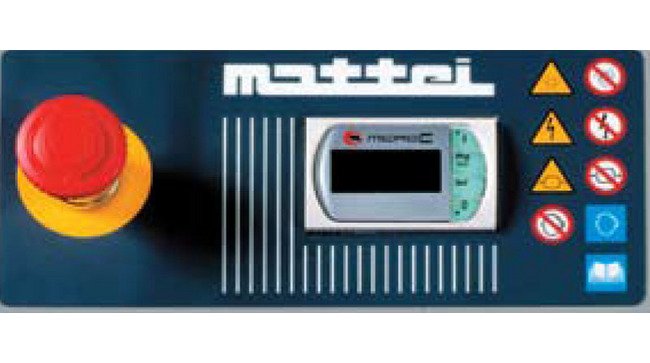

Advanced System Controllers Maestroxs
State-of-the-art computerized controller, MaestroXS automatically controls, monitors and programs the compressor's operation, and can be connected to a PC for remote control. In addition to providing all of the features found in the MicroC, MaestroXS can become master of a multi-compressor compressed air plant, thus saving on the installation of a dedicated Master controller, if connected to other compressed air packages equipped with MaestroXS controllers.
Capacity Controls Adapt To Your Demands 0
The layout and design of every air system is different. Some systems have very little air storage; some have an enormous volume of air storage. Some have small diameter air piping that is high in pressure drop; some have oversized piping to minimize pressure drop.Thus, it is wise to select compressors with control schemes that can adapt to the demands and dynamics of your system. Mattei provides control flexibility to adapt to your system demands to help you save energy and prevent short-cycling and ambient oil misting problems created by inflexible control schemes and underutilized compressors.
Combined Onoff Load And Modulation Regulation 0
This regulation allows Mattei compressors to modulate within a set pressure range (for example, ± 4 - 5 psi). Should the air demand decrease, this regulation also allows the compressor to run off load and stop, with evident energy savings. Ideal for applications with little storage and large variations in demand
Energy Saving Automatic Loadoff Load 0
Load/Off Load mode maintains line pressure within a minimum/maximum pressure range, and the compressor may stop and restart according to air demand. “Load” initiates when the minimum pressure setting is reached and the compressor deliver 100% of its capacity. “Off Load” initiates when the maximum pressure setting is reached, and the intake valve closed and sump is decompressed to allow for a significant reduction of the absorbed power consumption. Should the pressure continue to remain high, the compressor will stop. Ideal for applications with adequate storage or large variations in air demand.
Get More For Less 0

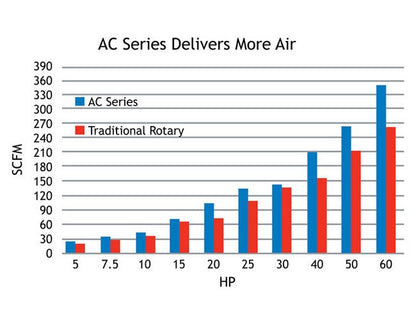

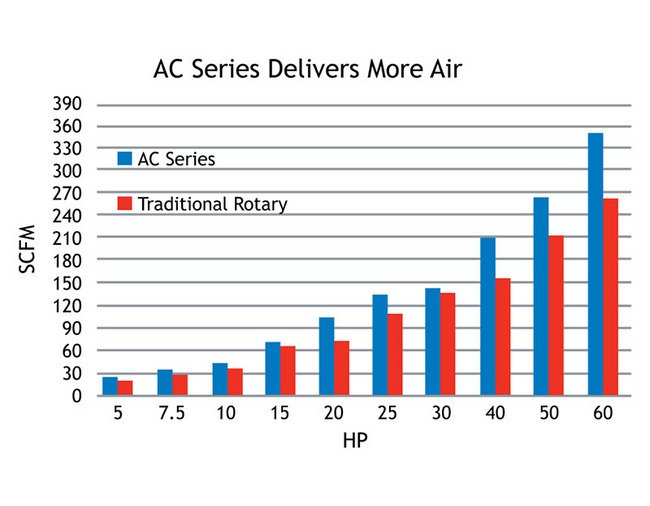

AC Series use our most advanced airend designs. Unlike typical rotary screw compressors, AC Series models use precision matched airends, direct-coupled to high efficiency motors that revolve at just 1,800 rpm, to deliver maximum energy efficiency and performance at design pressure. Thus, it is not uncommon to select a smaller HP AC Series model to meet the air demands of the customer.For example, say you need about 130 SCFM. Mattei can offer you our traditional 30 HP ERC Series model (129 scfm) or, we can offer you our 25 HP AC Series rated at 130 SCFM. Each produces about the same volume of air, but that 5 HP difference saves you money the moment you turn it on - that's why upgrading to an AC Series just makes sense. AC Series helps you get more air for less energy. Lower your electric bill month-after-month, year-after-year.Get more for less. Get a Mattei.
High Quality Compressed Air 0
Mattei compressors have an exclusive and efficient oil separating system which occurs in three stages: in the initial stage most of the oil is separated in a labyrinth in the compression chamber; the flow then enters the separator chamber where a mechanical separation takes place through speed reduction and flow deviation; the last phase occurs through the separator element. Only 0.02% of the initial oil arrives to this final stage; this is the reason for which the average life of Mattei's separator element is 10,000 operating hours. Most importantly, this separating system guarantees a maximum oil residue of 3 ppm in Mattei®'s compressed air.
How It Works 0

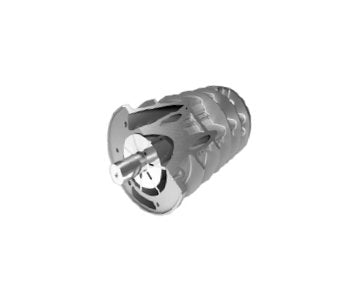

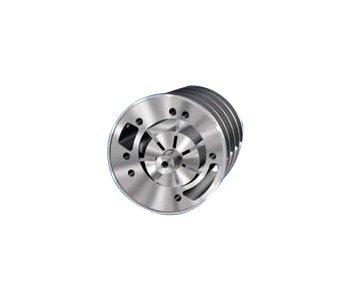

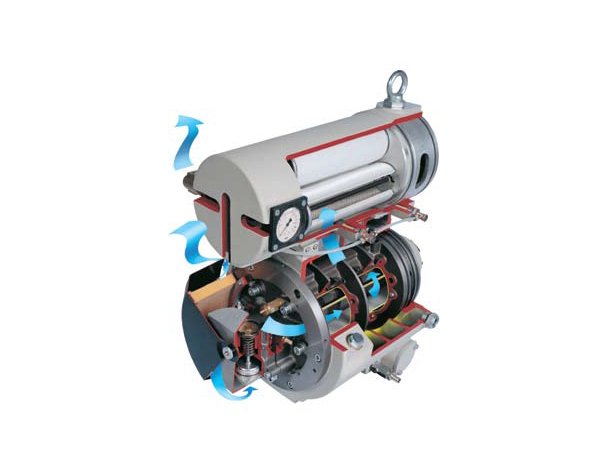

Ambient air is drawn through a filter into the compression chamber consisting of a stator in which an eccentrically arranged rotor revolves at 1,800 rpm. An air intake valve automatically adjusts incoming air volume to match your control scheme. The rotor has longitudinal slots in which the vanes slide. Zero-wear vanes ride on a thin film of oil and are held against the stator by centrifugal force. The air is compressed through the contraction in volume of each chamber formed by the vanes, the rotor and the stator wall. Sealing, cooling and lubrication are ensured by the oil injected into the chamber.
Modulation Operating Mode At Constant Pressure 0

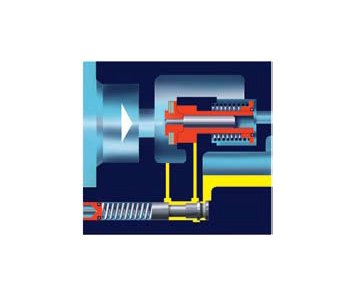

Thanks to a modulating proportional intake valve that supplies air at constant pressure, these compressors can even work without a receiver. With this regulation air delivery is automatically adapted to the system demand. Ideal for applications with little storage or continuous high air demands.
Note 0
Mattei Compressors, Inc. reserves the right to change or replace the data contained in this publication, without notice.
Simply Superior 0
All Mattei air compressors retain the same heritage of innovation, durability and reliability. AC Series are highly-efficient cabinet style air compressors that raise the bar in delivering superior value, unrivaled high capacity performance and energy efficient operation.AC Series must be compared on an SCFM basis - not based on HP. Why? Because, AC Series uses our most advanced airends to produce more SCFM per HP than typical rotary air compressors, so to do a fair comparison, you usually need to select the next smaller size. In fact, it is not uncommon to get the same level of SCFM output from the next smaller AC Series model.
Specifications Brand
Mattei
Specifications Flow Rate
15 to 350 scfm
Specifications Industry Standards
CAGI Compressed Air and Gas Institute® | ISO 9001:2001 | ULc Approval
Specifications Warranty
10 years
Technical Features Air Outlet Rp
2 in
Technical Features Electric Motor Power
60 hp | 45 kW
Technical Features Free Air Delivery Hhx At 175 Psig Rating
254 psig
Technical Features Free Air Delivery Hx At 150 Psig Rating
307 psig
Technical Features Height
66 in
Technical Features Voltage
208 V | 230 V | 460 V | 575 V
Technical Features Width
38 in
