Mefiag® Horizontal Disc Filtration System - Plating Tanks 200-400 Gallons
Mefiag® Horizontal Disc Filtration System - Plating Tanks 200-400 Gallons
SKU:FIL-9b0592
High-efficiency Mefiag® Horizontal Disc Filtration System for electroplating in 200-400 gallon tanks.
Regular price
$5,849.99
Regular price
Sale price
$5,849.99
Unit price
per
Initiate Order
Mefiag® Horizontal Disc Filtration System - Plating Tanks 200-400 Gallons
$5,849.99
Quantity: 1
Claim Your Seller Account
Mefiag® Horizontal Disc Filtration System - Plating Tanks 200-400 Gallons
$5,849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

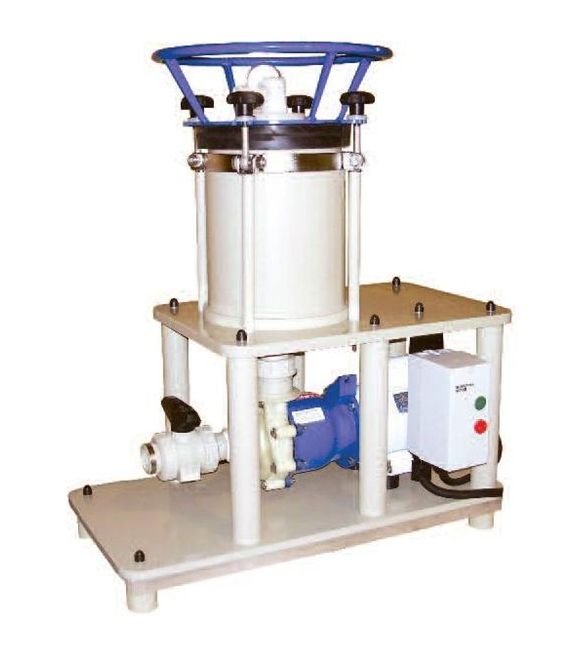

The Mefiag® Series 0620-PPM and 0620-PPM-SY Horizontal Disc Filtration Systems are designed for superior performance in electroplating processes. Features include all-polypropylene construction, magnetic drive pump, and high filtration efficiency. With capacities ranging from 1,200 to 2,400 gph, these systems offer a filtration surface area of 12 ft² and a sludge holding capacity of 200 in³. Easy to maintain and operate, they are ideal for filtering nickel, copper, and zinc electrolytes at temperatures up to 180°F. The unitized pack design allows for effortless maintenance and flexibility in filter media selection.
Product Specifications
Features And Benefits Features And Benefits
All polypropylene construction withstands highly acidic environments Magnetic drive pump with silicone carbide bearings is standard "Unitized Pack" Large sludge holding capacity Low disposal cost (100 GPH per sq/ft of surface area) High efficiency Pre-coated flow rate to 1200 GPH Temperatures to 180 °F(82 °C) Specific gravities to 1.5 Shipped ready for immediate operation
Filter Filter

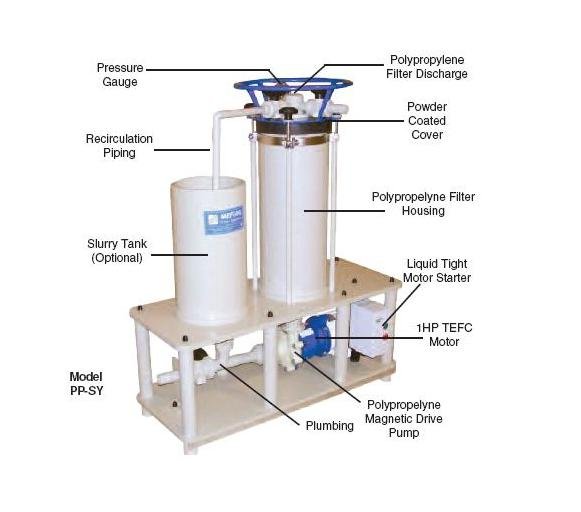

The filter chamber is constructed of all polypropylene with bottom inlet and top discharge.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. An air release diaphragm valve is provided.A stainless steel pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Base is polypropylene with stainless steel channel support structure and polypropylene feet. Casters are available upon request.
Magnetic Drive Pump Magnetic Drive Pump
A polypropylene, magnetic drive pump Model PM is furnished with a 1HP TEFC motor. High purity silicon carbide bearings and viton o-rings are standard. The magnetic switch motor starter is housed in a liquid tight NEMA 4X enclosure.
Piping Valves And Connections Piping Valves And Connections

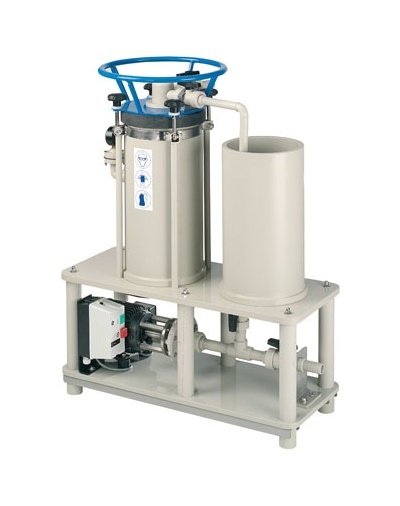

Piping, valves, and connections are all hard pipe polypropylene. SY models are piped to allow for flow from the solution tank, slurry tank, and the filter chamber.
Slurry Tank Specifications Slurry Tank Specifications
Piping, valves, and connections are all hard pipe polypropylene. SY models are piped to allow for flow from the solution tank, slurry tank, and the filter chamber.
Specifications Approximate Crated Net Weight
310 lbs
Specifications Approximate Height
43 "
Specifications Approximate Length
40 "
Specifications Approximate Width
16 "
Specifications Filter Media Diameter
8-1/8 "
Specifications Filtration Surface Area
12 ft²
Specifications Hose Connection Discharge
1-1/4 "
Specifications Hose Connection Suction
1-1/2 "
Specifications Hose Length
10 ft
Specifications Manufacturer
Mefiag
Specifications Number Of Filter Media
31
Specifications Open Pumping Capacity
2,400 gph
Specifications Precoated Flow Rate Filtering Capacity
1,200 gph
Specifications Pump Options
PPM - Magnetic End Suction Pump - Standard | PPQ - Magnetic Self-Priming Pump - Adder | PPS - Mechanical Seal CRS-40-PP - No Extra Charge
Specifications Sludge Holding Capacity
200 in³
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder
Specifications Tefc Motor
1 hp
Unitized Pack Unitized Pack

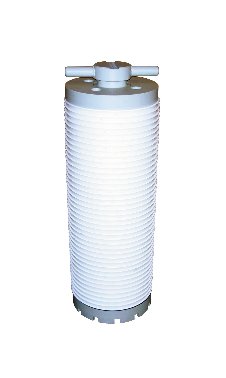

The disc assembly is all polypropylene. All filters discs are configured as a "unitized pack" to allow easy removal for maintenance. The unitized pack will consist of a bottom plate, bottom gasket, media, center post, pressure plate, and locking nut with handles.Filter media selected for the application is placed between the rigid polypropylene discs. Ten (10) micron cellulose is standard. Carbon/cellulose (10 micron) and polypropylene of various densities are available.
