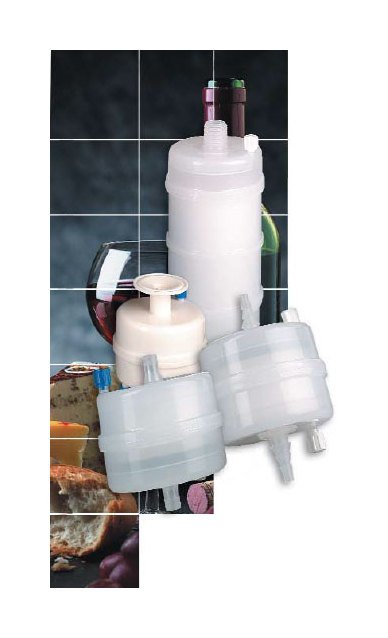

Memtrex NY Capsule Filters (CMNY) have a unique polyester and polypropylene construction for enhanced reliability and usefulness. Polyester housings and support layers ensure and maintain capsule integrity, while a nylon prefilter membrane layer over a final membrane layer significantly enhances filter life. CMNY filters are suitable for a broad range of applications, meeting worldwide demand for functionality in chemical, beverage, and water processing.
Product Specifications
Additional Information 0
Memtrex NY Capsule filters may be sanitized with a variety of commonly used chemical agents; however, acidic solutions should be avoided. The capsules may be repeatedly autoclaved (121ºC 30 min) for up to 5 cycles.GE certifies that the materials contained in its Memtrex NY Capsule filters meet U.S. FDA requirements for food contact under the applicable regulations in 21 CFR. For further information, contact the GE Technical Services Department. Memtrex NY filters meet the test criteria for USP class VI-121ºC Plastics.GE filter capsules are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.
Applications 0
Memtrex NY Capsule Filters have been designed for reliable filtration in a wide range of applications, including:BeveragesElectronicsPharmaceuticalsCosmeticsFine and Bulk Chemicals
Dimensions Diameter
3.5 in | 9 cm
Dimensions Effective Filtration Area
3 ft² | 2806 cm²
Dimensions Length
7.6 - 9.1 in | 19 - 23 cm
Features And Benefits 0
Utilizes inherently hydrophilic, high-purity Nylon66 membraneInnovative serial layer membrane designThermal weld techniques - no adhesives, resins or bindersLow extractables100 % integrity tested and rinsed for uncompromised reliability and consistency
Materials Of Construction Filtration Media
Two Layers of Hydrophilic Nylon66 (Prefilter Layer Over Final Layer)
Materials Of Construction Membrane Support Layers
Polyester Microfiber
Materials Of Construction Structural Components
Polyester and Polypropylene
Operational Limits Maximum Differential Pressure 70f 21c
60 psi | 4.1 bar
Operational Limits Maximum Operating Temperature At 30 Psi 21 Ba
110 ºF | 43 ºC
Operational Limits Maximum Operational Pressure 70f 21c In Gas
55 psi | 3.8 bar
Operational Limits Maximum Operational Pressure 70f 21c In Liqui
80 psi | 5.5 bar
Specifications Absolute Micron Rating
0.2 µm
Specifications Capsule Size
Medium
Specifications Connections
3/8" (9.5 mm) Hose Barb
Specifications Integrity Testing
Air diffusion through water saturated membrane is ≤ 1.8 cc/min per ft² of Effective Filtration Area
Specifications Note
All products mentioned are trademarks of the General Electric Company and may be registered in one or more countries.
Specifications Test Pressure
30 psi | 2.1 bar
Specifications Type
CMNY
