Mitee-Bite® 10mm Table T-Slot Clamping Kit
Mitee-Bite® 10mm Table T-Slot Clamping Kit
SKU:KIT-a16db4
Efficiently clamp workpieces with precision using the Mitee-Bite® 10mm Table T-Slot Clamping Kit. Kit includes T-nuts, fixture clamps, and hex keys for versatile machining setups.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Mitee-Bite® 10mm Table T-Slot Clamping Kit
$89.99
Quantity: 1
Claim Your Seller Account
Mitee-Bite® 10mm Table T-Slot Clamping Kit
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

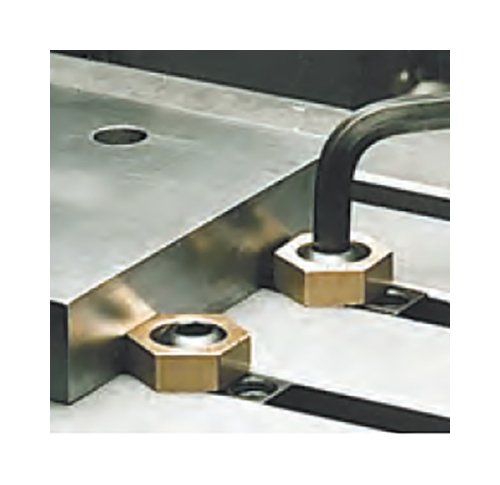

The Mitee-Bite® 10mm Table T-Slot Clamping Kit is an essential tool for secure and efficient machining setups. This kit features a unique cam action clamping element combined with T-nuts, providing a strong grip with a maximum torque of 8.55 N·m and a holding force of 3,568 N. With dimensions tailored for precision, including 10mm T-Slot width and various other dimensions, this kit is designed for versatility. The kit includes 4 Mitee-Bite T-Nuts, 6 Fixture Clamps, and 2 Hex Keys for comprehensive use. Ideal for low-profile clamping on machine tables, enabling fast and reliable setups for a wide range of industrial applications.
Product Specifications

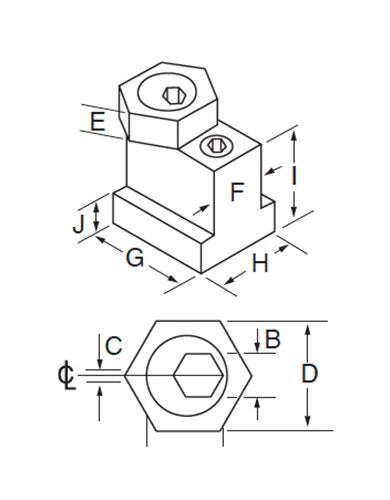

Dimensions Dimension B
5 mm
Dimensions Dimension C
1.01 mm
Dimensions Dimension D
15.86 mm
Dimensions Dimension E
4.75 mm
Dimensions Dimension F
10 mm
Dimensions Dimension G
23.2 mm
Dimensions Dimension H
14.2 mm
Dimensions Dimension I
14.2 mm
Dimensions Dimension J
4.3 mm

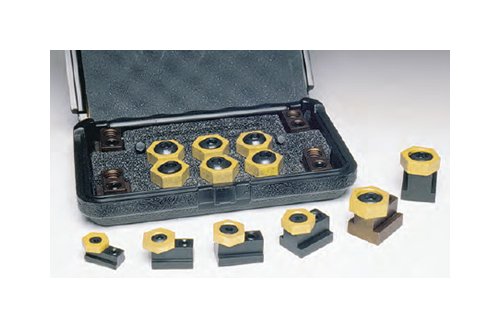

Kit Includes Kit Includes
4 Mitee-Bite T-Nuts6 Mitee-Bite Fixture Clamps2 Hex Keys
Technical Specs Brands
Mitee-Bite®
Technical Specs Holding Force
3,568 N
Technical Specs Maximum Torque
8.55 N·m
Technical Specs Table T Slot
10 mm
