Mitee-Bite® 20mm Table T-Slot Clamping Kit
Mitee-Bite® 20mm Table T-Slot Clamping Kit
SKU:KIT-4f6362
Enhance machining precision and efficiency with the Mitee-Bite® 20mm Table T-Slot Clamping Kit. Ideal for rapid setups and low-profile clamping on machine tables. Includes T-nuts, Fixture Clamps, and Hex Keys.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Mitee-Bite® 20mm Table T-Slot Clamping Kit
$89.99
Quantity: 1
Claim Your Seller Account
Mitee-Bite® 20mm Table T-Slot Clamping Kit
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

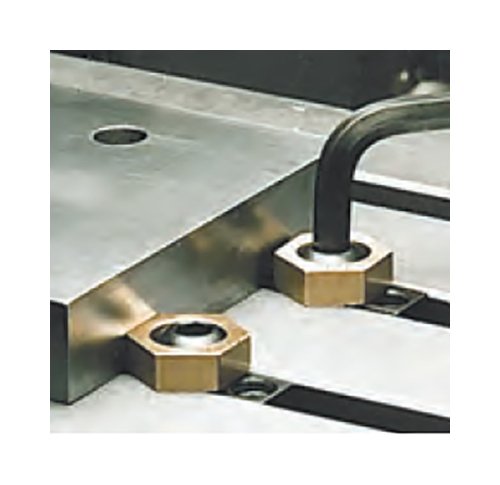

The Mitee-Bite® 20mm Table T-Slot Clamping Kit is an essential tool for secure and efficient clamping in machining operations. Designed with a unique cam action clamping element and T-nuts, this kit locks firmly in machine T-slots, enabling low-profile clamping for rapid setups directly on the machine table. With a maximum torque of 135.00 N·m and a holding force of 26,680 N, it ensures stable and reliable hold. Included in the kit are 4 Mitee-Bite T-Nuts, 6 Mitee-Bite Fixture Clamps, and 2 Hex Keys, making it a comprehensive solution for various clamping needs. Whether for industrial manufacturing or institutional procurement, this kit offers precision, versatility, and efficiency.
Ready to Grow Without Cash Flow Constraints?

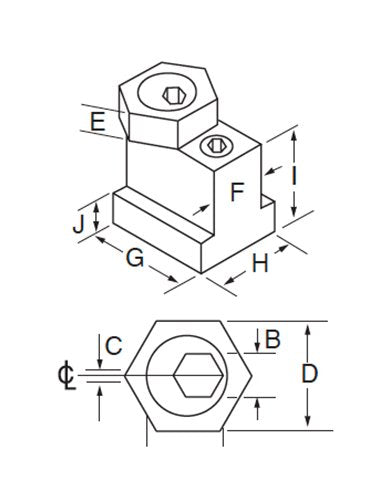

Product Specifications
Dimensions Dimension B
12 mm
Dimensions Dimension C
2.54 mm
Dimensions Dimension D
30.15 mm
Dimensions Dimension E
12.70 mm
Dimensions Dimension F
20 mm
Dimensions Dimension G
39.2 mm
Dimensions Dimension H
31.8 mm
Dimensions Dimension I
31.8 mm
Dimensions Dimension J
12.6 mm

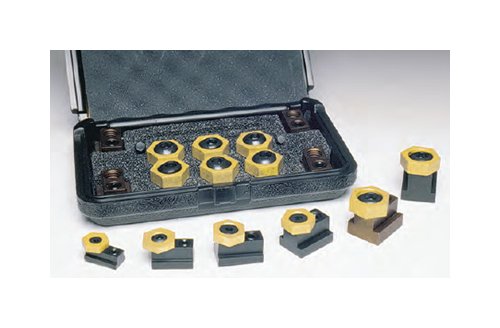

Kit Includes Kit Includes
4 Mitee-Bite T-Nuts6 Mitee-Bite Fixture Clamps2 Hex Keys
Technical Specs Brands
Mitee-Bite®
Technical Specs Holding Force
26,680 N
Technical Specs Maximum Torque
135.00 N·m
Technical Specs Table T Slot
20 mm
