MPI™ 45-Degree Tube Stub Elbow - T7NBT7
MPI™ 45-Degree Tube Stub Elbow - T7NBT7
SKU:FIT-4b56dc
Explore the MPI™ 45-Degree Tube Stub Elbow - A high-pressure, corrosion-resistant compression fitting for secure and gas-tight connections in demanding environments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MPI™ 45-Degree Tube Stub Elbow - T7NBT7
$49.99
Quantity: 1
Claim Your Seller Account
MPI™ 45-Degree Tube Stub Elbow - T7NBT7
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

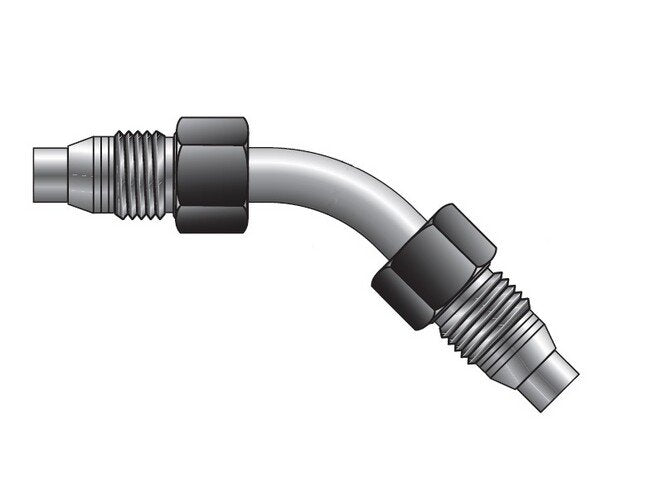

The MPI™ 45-Degree Tube Stub Elbow is a cutting-edge compression fitting designed by Parker Hannifin, the original Patent Holder, to meet the demanding needs of industries like off-shore oil and gas exploration, research labs, and other high-pressure environments. Engineered to handle up to 15,000 psi (1035 bar), this fitting ensures secure, gas-tight connections for various tubing materials, including 316 SS and 2507 Super Duplex. Featuring corrosion-resistant materials, advanced ferrule technology, and compliance with ASME standards, the MPI™ Fitting guarantees reliability, durability, and easy installation for critical applications.
Product Specifications

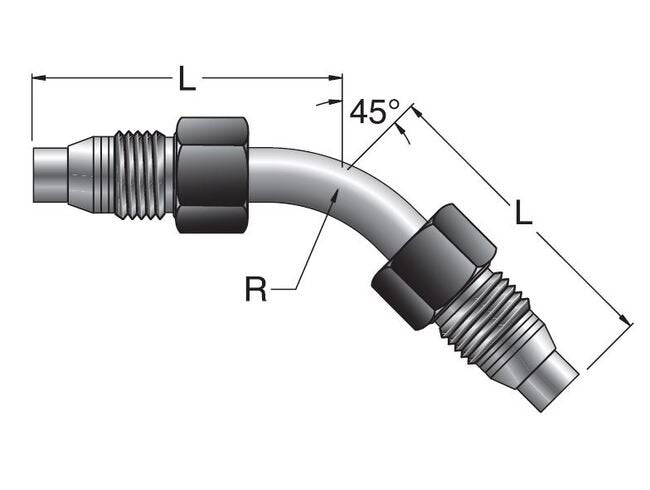

Dimensions Connection Type
MPI™ Tube
Dimensions L
10.00 in
Dimensions R
2.00 in
Dimensions Tube Size
9/16
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
