MPI™ 45° Tube Stub Elbow - T7NBT7
MPI™ 45° Tube Stub Elbow - T7NBT7
SKU:FIT-3c63f6
Secure, gas-tight MPI™ 45° Tube Stub Elbow for 15,000 psi pressures. Easy to install and durable for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MPI™ 45° Tube Stub Elbow - T7NBT7
$29.99
Quantity: 1
Claim Your Seller Account
MPI™ 45° Tube Stub Elbow - T7NBT7
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

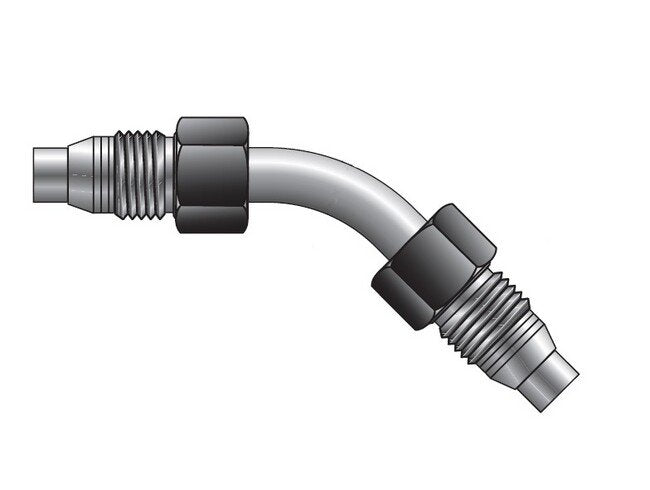

The MPI™ 45° Tube Stub Elbow by Parker Hannifin, the original Patent Holder of 'Tube Fitting, Medium Pressure,' offers a secure and gas-tight connection for operating pressures up to 15,000 psi. Designed for a wide range of industries, this fitting is suitable for handling liquids, gases, and chemicals. Each MPI™ Fitting includes front and back ferrules and compression gland nut for easy installation. With features like corrosion-resistant Parker Suparcase®, molybdenum disulfide-coated nut, and ASME standard compliance, this elbow ensures reliability, durability, and ease of assembly.
Product Specifications
Dimensions Connection Type
MPI™ Tube

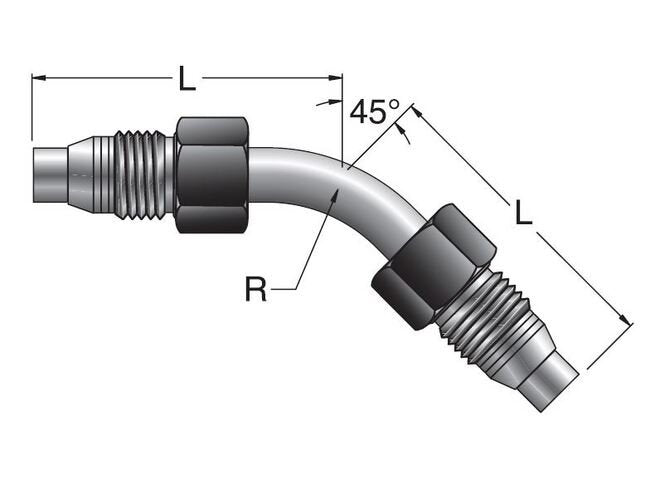

Dimensions L
10.00 in
Dimensions R
.75 in
Dimensions Tube Size
1/4
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
