MPI™ Ball and O-Ring Check Valves - MAC & MACB Series
MPI™ Ball and O-Ring Check Valves - MAC & MACB Series
SKU:VAL-bd9b15
Achieve precision flow control with Parker's MPI™ Ball & O-Ring Check Valves - MAC & MACB Series for high-pressure applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
MPI™ Ball and O-Ring Check Valves - MAC & MACB Series
$189.99
Quantity: 1
Claim Your Seller Account
MPI™ Ball and O-Ring Check Valves - MAC & MACB Series
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

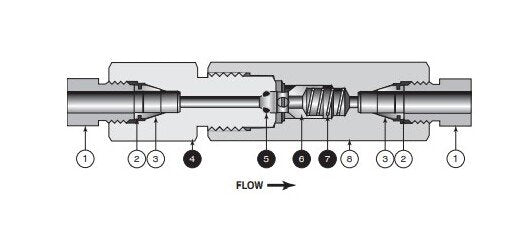

The MPI™ Ball and O-Ring Check Valves from the MAC and MACB series by Parker offer reliable unidirectional flow control in high-pressure applications. The MACB series features an all-metal design, suitable for temperatures up to 1000°F, with a precision-engineered ball and poppet for secure shut-off without vibration. On the other hand, the MAC series provides tight shut-off for liquids and gases, ensuring dependable performance. With options for low-temperature configurations and special orders for varying cracking pressures, these valves are versatile and durable for diverse industrial needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

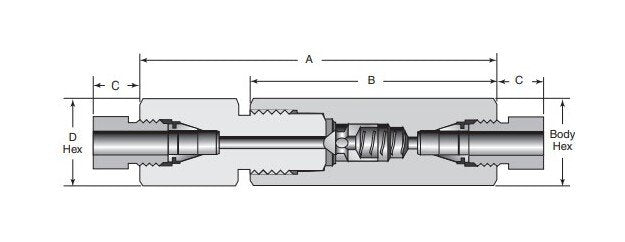

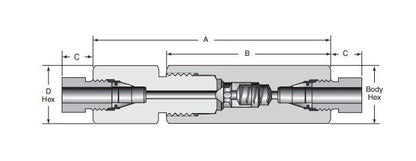

Dimensions A
4.40 in
Dimensions B
3.06 in
Dimensions Body Hex
1 in
Dimensions C
.63 in
Dimensions Connection
3/8 MPI™
Dimensions D Hex
15/16 in
Dimensions Orifice
.219 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
.84
Dimensions Repair Kits
R6MACB-2507
Dimensions Tubing Od
3/8
Specifications Note
Temperature range for standard Fluorocarbon Rubber O-RING check valves is 0°F to 400°F (-18°C to 204°C). For temperatures under 0°F to -423°F use PTFE o-ring (-TO). If under -110°F (-79°C) Low Temperature Spring must be used (-LT option).
