The MPI™ MAB Double Block and Bleed Ball Valves by Parker are expertly engineered for quarter and half-turn media shutoff or switching applications up to 15,000 psi. With a single-piece trunnion style ball design and re-torqueable seats, these valves are ideal for severe service environments. Featuring a variety of end connections and combinations, the MAB Valves offer exceptional reliability and performance. The innovative design eliminates shear failure, reduces side loading, minimizes pressure drop, and enhances cycle life. Viton™ Fluoroelastomer O-Rings, graphite filled PTFE stem seal, and options for 2507 Super Duplex material ensure durability, efficiency, and extended service life.
Product Specifications

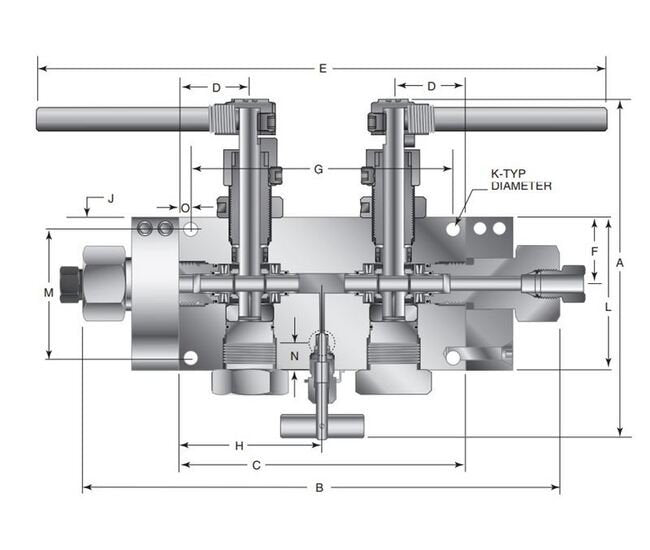

Dimensions A
13.02 in
Dimensions B
15.40 in
Dimensions Block Thickness
3.00 in
Dimensions C
10.50 in
Dimensions Connection
3/4 MPI™
Dimensions Cv
6.40
Dimensions D
2.66 in
Dimensions E
27.45 in
Dimensions F
2.53 in
Dimensions G
8.69 in
Dimensions H
5.25 in
Dimensions J
.72 in
Dimensions K
.41 in
Dimensions L
5.25 in
Dimensions M
3.81 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.53 in
Dimensions N Vent Connection
1.75 in
Dimensions O
.91 in
Dimensions Orifice Size
5/8 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
