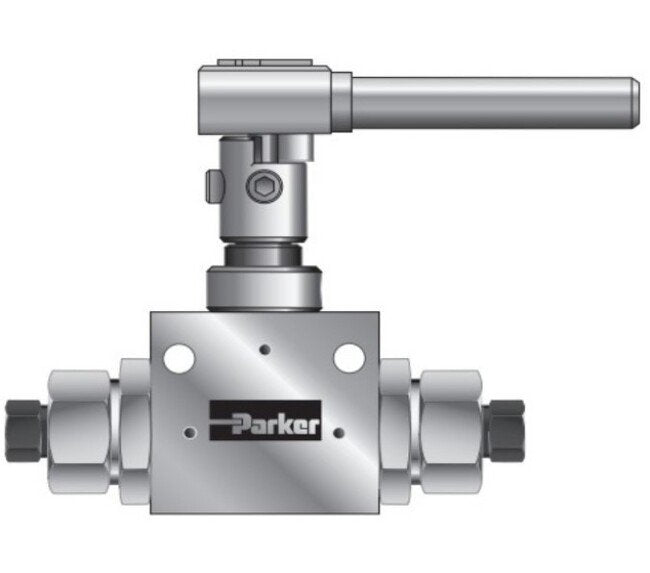

MPI™ MAB Series 2 Way Ball Valves - 15,000 psi, 3/4" Orifice, 1 MPI™ Connection
MPI™ MAB Series 2 Way Ball Valves - 15,000 psi, 3/4" Orifice, 1 MPI™ Connection
SKU:VAL-afbfc3
Reliable MPI™ MAB Series Ball Valves - Ideal for up to 15,000 psi media shutoff applications. Choose from materials including 316 SS or 2507 Super Duplex.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series 2 Way Ball Valves - 15,000 psi, 3/4" Orifice, 1 MPI™ Connection
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 2 Way Ball Valves - 15,000 psi, 3/4" Orifice, 1 MPI™ Connection
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series 2 Way Ball Valves are engineered for precision with manual, pneumatic, or electric actuation. Designed for up to 15,000 psi applications, these valves feature a single-piece trunnion-style ball for exceptional reliability in severe service conditions. The re-torqueable PEEK™ seat glands ensure long-lasting performance. With options for materials including 316 Stainless Steel or 2507 Annealed Super Duplex, these valves offer full port flow, low friction stem seals, and a wide temperature range. Ideal for diverse applications, meet stringent standards for durability, performance, and safety.
Ready to Grow Without Cash Flow Constraints?

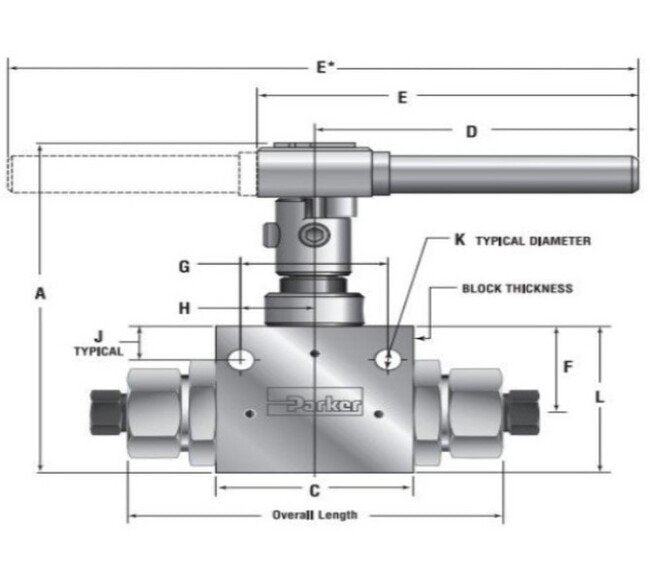

Product Specifications
Dimensions A
10.13 in
Dimensions Block Thickness
3.00 in
Dimensions C
4.50 in
Dimensions Connection
1 MPI™
Dimensions Cv
21.00 in
Dimensions D
11.00 in
Dimensions E
22.00 in
Dimensions F
2.47 in
Dimensions G
3.25 in
Dimensions H
1.63 in
Dimensions J
.69 in
Dimensions K
.41 in
Dimensions L
4.50 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.69 in
Dimensions Orifice Size
3/4 in
Dimensions Overall Length
9.18 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B12S-2507
