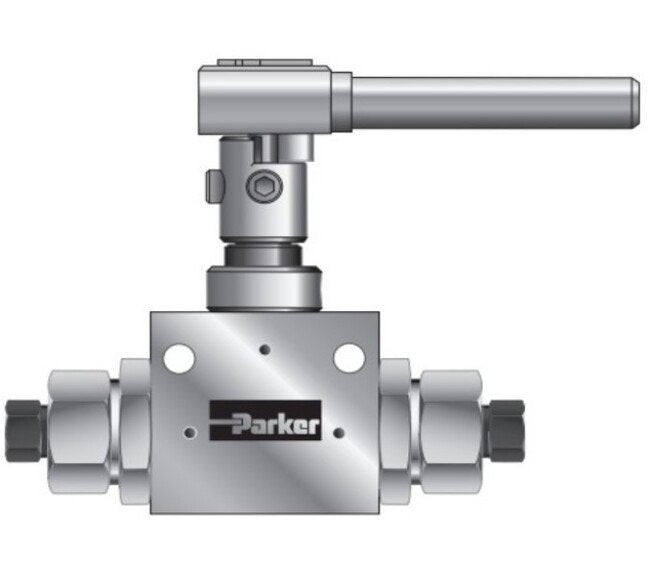

The MPI™ MAB Series Ball Valves offer a robust solution for quarter and half turn media shutoff or switching applications up to 15,000 psi. Designed with a single-piece trunnion style ball for enhanced durability, these valves are ideal for severe service environments. Features include re-torqueable seats, low friction stem seal, and full port flow path reducing pressure drop. With temperature ranges from 0°F to 400°F, these valves are available in 2-way Bi-Directional and 3-Way styles to meet diverse operational needs.
Ready to Grow Without Cash Flow Constraints?

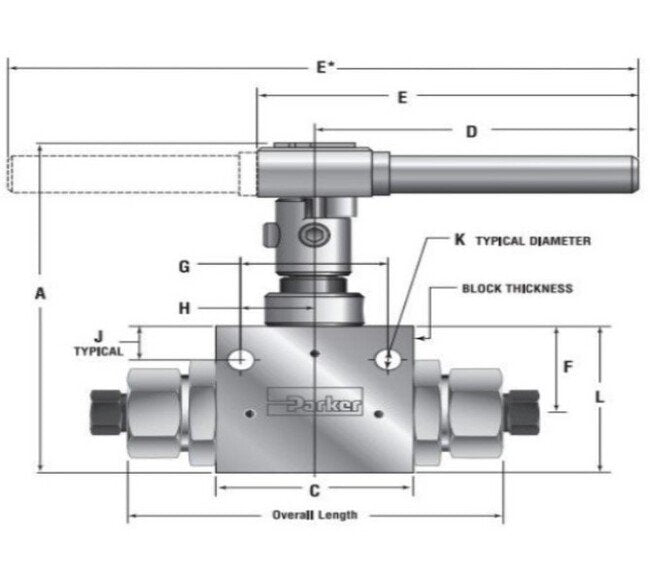

Product Specifications
Dimensions A
4.33 in
Dimensions Block Thickness
1.00 in
Dimensions C
2.00 in
Dimensions Connection
9/16 MPI™
Dimensions Cv
1.51 in
Dimensions D
3.37 in
Dimensions E
3.83 in
Dimensions F
1.13 in
Dimensions G
1.50 in
Dimensions H
.75 in
Dimensions J
.44 in
Dimensions K
.28 in
Dimensions L
1.91 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.25 in
Dimensions Orifice Size
1/4 in
Dimensions Overall Length
5.34 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R2B4S
