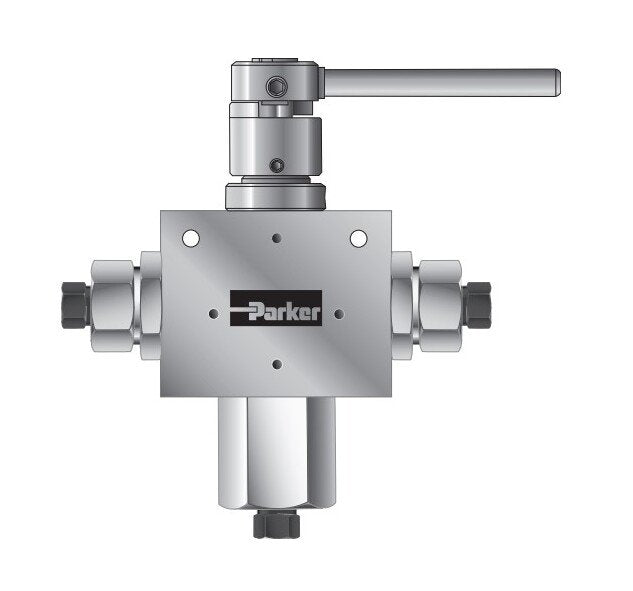

MPI™ MAB Series 3 Way Ball Valve
MPI™ MAB Series 3 Way Ball Valve
SKU:VAL-d6b7be
Versatile MPI™ MAB Series 3 Way Ball Valve for media shutoff or switching applications up to 15,000 psi, with trunnion ball design and low friction stem seals.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
MPI™ MAB Series 3 Way Ball Valve
$249.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series 3 Way Ball Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series 3 Way Ball Valve is a versatile solution for quarter and half turn media shutoff or switching applications up to 15,000 psi. Featuring a single-piece trunnion style ball design with re-torqueable seats, this valve is ideal for severe service environments. With options for manual, pneumatic, or electric actuation, the MAB Series offers flexibility for various operational needs. The valve includes a full port flow path to minimize pressure drop and low friction stem seals for enhanced cycle life. Operating within a temperature range of 0°F to 400°F, this valve is suitable for a wide range of applications.
Product Specifications

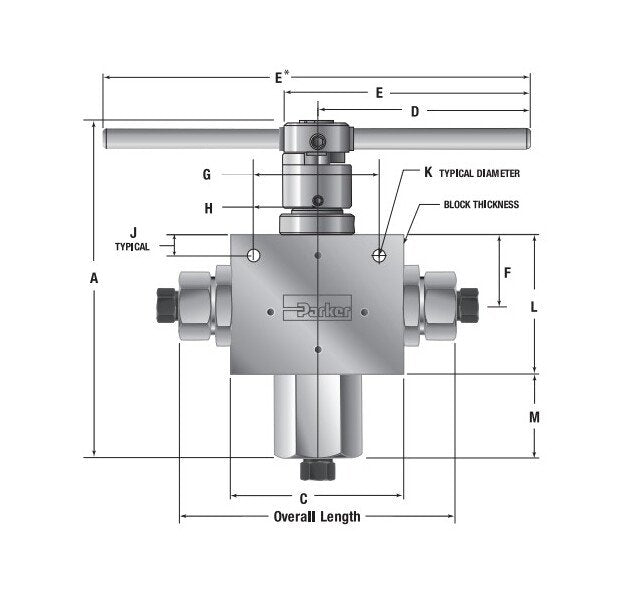

Dimensions A
6.23 in
Dimensions Block Thickness
1.00 in
Dimensions C
2.50 in
Dimensions Connection
9/16 MPI™
Dimensions Cv
.50 in
Dimensions D
3.37 in
Dimensions E
3.90 in
Dimensions F
1.12 in
Dimensions G
1.50 in
Dimensions H
.75 in
Dimensions J
.43 in
Dimensions K
.28 in
Dimensions L
2.26 in
Dimensions M
1.54 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.19 in
Dimensions Orifice Size
3/16 in
Dimensions Overall Length
5.84 in
Dimensions Type
90º Diverter
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
Specifications Repair Kits
R3BD3S
