MPI™ MAB Series Double Block and Bleed Ball Valves
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Double Block and Bleed Ball Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial operations with our MPI™ MAB Series Double Block and Bleed Ball Valves. Engineered to deliver peak performance at up to 15,000 psi, these valves feature a one-piece trunnion style ball/stem design for enhanced durability in severe service applications. With re-torqueable PEEK™ Seat Glands, low friction stem seals, and a full port flow path, our valves ensure reliable media shutoff or switching. Operating in a temperature range from 0°F to 400°F, upgrade to our valves for superior performance and longevity.

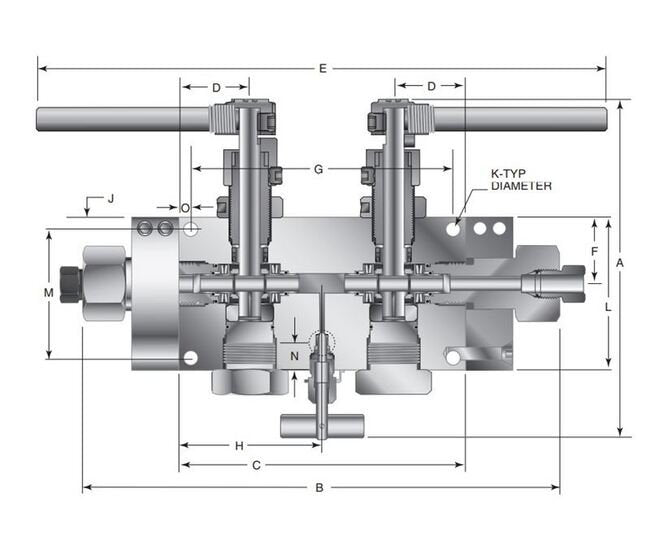

Product Specifications
Dimensions A
7.14 in
Dimensions B
11.17 in
Dimensions Block Thickness
1.75 in
Dimensions C
6.00 in
Dimensions Connection
1/2 MPI™
Dimensions Cv
2.10
Dimensions D
1.50 in
Dimensions E
12.98 in
Dimensions F
1.38 in
Dimensions G
5.00 in
Dimensions H
3.00 in
Dimensions J
.41 in
Dimensions K
.28 in
Dimensions L
3.19 in
Dimensions M
2.38 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.31 in
Dimensions N Vent Connection
.65 in
Dimensions O
.50 in
Dimensions Orifice Size
3/8 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
