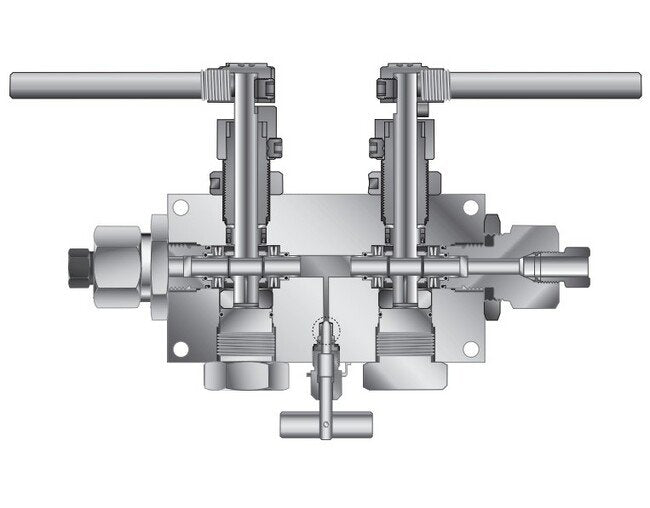

The MPI™ MAB Series Double Block and Bleed Ball Valves by Parker are meticulously engineered for industrial-grade quarter and half turn media shutoff applications, with a robust design capable of handling pressures up to 15,000 psi. Featuring a one-piece trunnion-style ball/stem design, these valves ensure maximum reliability and reduced side loading compared to two-piece configurations. The re-torqueable PEEK™ seat glands extend the valve's lifespan, while the full port flow path minimizes pressure drop. With low-friction stem seals and a wide temperature range, these valves offer exceptional performance in severe service applications.
Product Specifications

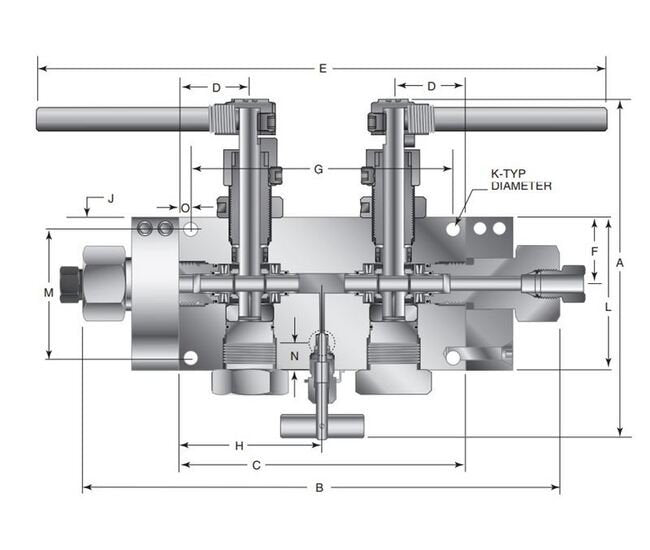

Dimensions A
13.02 in
Dimensions B
15.40 in
Dimensions Block Thickness
3.00 in
Dimensions C
10.50 in
Dimensions Connection
3/4 MPI™
Dimensions Cv
6.40
Dimensions D
2.66 in
Dimensions E
27.45 in
Dimensions F
2.53 in
Dimensions G
8.69 in
Dimensions H
5.25 in
Dimensions J
.72 in
Dimensions K
.41 in
Dimensions L
5.25 in
Dimensions M
3.81 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.53 in
Dimensions N Vent Connection
1.75 in
Dimensions O
.91 in
Dimensions Orifice Size
5/8 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
