MPI™ MAB Series Double Block and Bleed Ball Valves
MPI™ MAB Series Double Block and Bleed Ball Valves
SKU:VAL-f84521
Enhance operational safety and efficiency with Parker's MPI™ MAB Series Double Block and Bleed Ball Valves. Ideal for high-pressure applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MPI™ MAB Series Double Block and Bleed Ball Valves
$349.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Double Block and Bleed Ball Valves
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

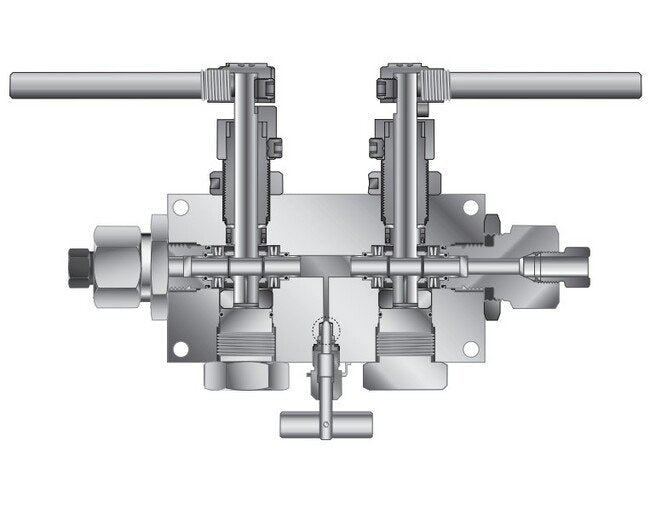

The MPI™ MAB Series Double Block and Bleed Ball Valves by Parker are meticulously engineered for optimal performance in critical industrial applications. With a MAWP of 15000 psi and a one-piece trunnion style ball/stem design, these valves ensure reliable media shutoff and switching. Featuring re-torqueable PEEK™ Seat Glands, CW 316 Stainless Steel material, and low friction stem seal, they offer extended lifespan and reduced maintenance needs. Designed for severe service applications, these valves meet stringent industry standards, making them a trusted choice for institutional and government procurement.
Product Specifications

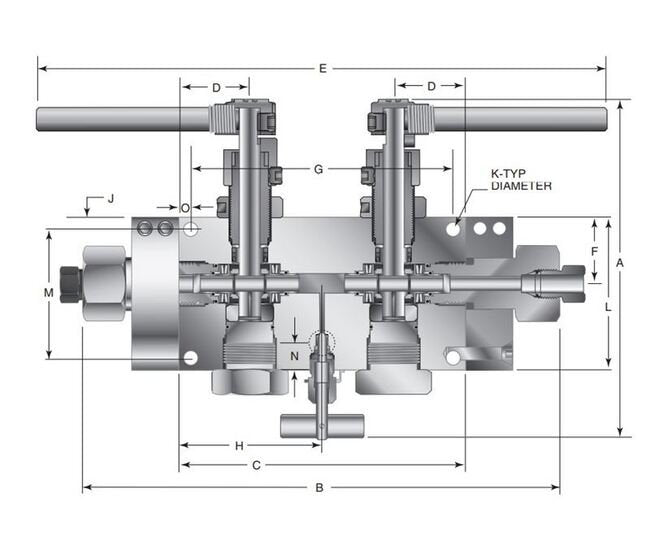

Dimensions A
7.14 in
Dimensions B
11.17 in
Dimensions Block Thickness
1.75 in
Dimensions C
6.00 in
Dimensions Connection
9/16 MPI™
Dimensions Cv
2.40
Dimensions D
1.50 in
Dimensions E
12.98 in
Dimensions F
1.38 in
Dimensions G
5.00 in
Dimensions H
3.00 in
Dimensions J
.41 in
Dimensions K
.28 in
Dimensions L
3.19 in
Dimensions M
2.38 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.32 in
Dimensions N Vent Connection
.65 in
Dimensions O
.50 in
Dimensions Orifice Size
3/8 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
