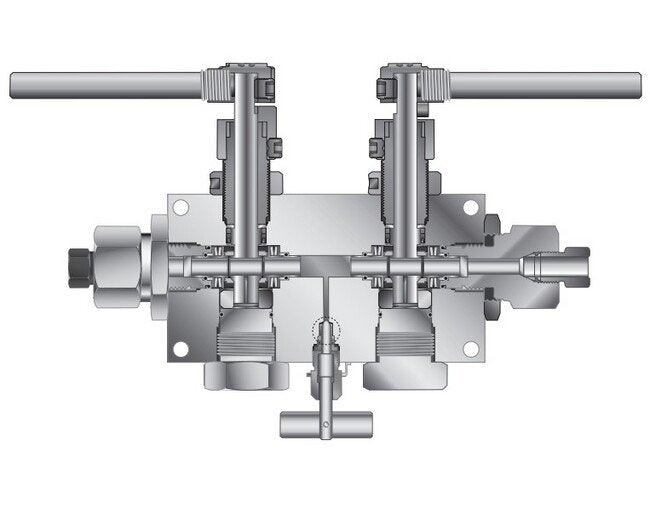

Experience unmatched performance with the MPI™ MAB Series Double Block and Bleed Ball Valves. Designed for quarter and half turn media shutoff or switching applications up to 15,000 psi, these valves feature a one-piece trunnion style ball/stem design for superior durability. With features like re-torqueable PEEK™ Seat Glands, full port flow path, and low friction stem seal, these valves ensure reliable operation in severe service applications. Temperature ranges from 0°F to 400°F (standard) and up to 500°F (option) provide versatility, making them ideal for industrial settings. Trust in the quality and functionality of MPI™ MAB Series valves for your critical applications.

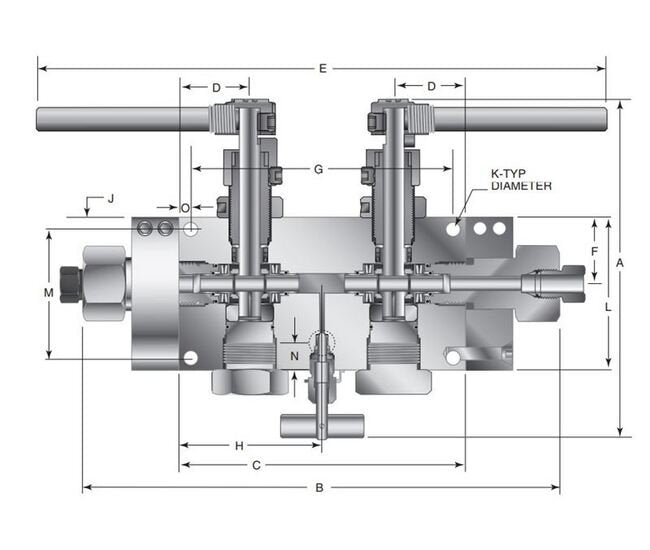

Product Specifications
Dimensions A
7.14 in
Dimensions B
11.17 in
Dimensions Block Thickness
1.75 in
Dimensions C
6.00 in
Dimensions Connection
3/8 MPI™
Dimensions Cv
1.80
Dimensions D
1.50 in
Dimensions E
12.98 in
Dimensions F
1.38 in
Dimensions G
5.00 in
Dimensions H
3.00 in
Dimensions J
.41 in
Dimensions K
.28 in
Dimensions L
3.19 in
Dimensions M
2.38 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.25 in
Dimensions N Vent Connection
.65 in
Dimensions O
.50 in
Dimensions Orifice Size
3/8 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
