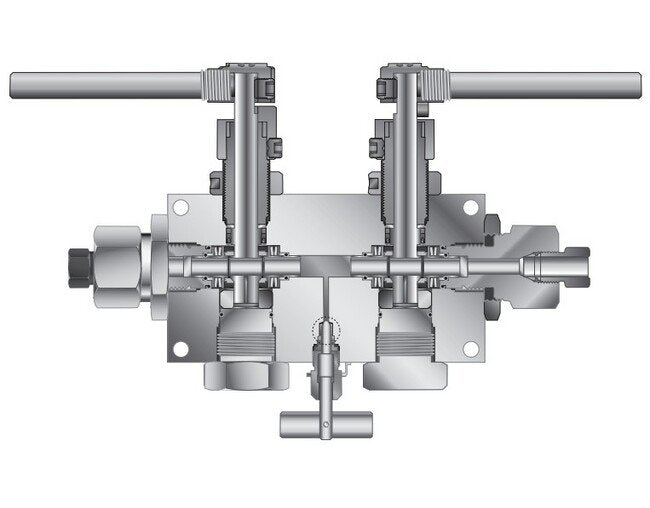

The MPI™ MAB Series Double Block and Bleed Ball Valves by Parker are engineered for exceptional performance in demanding applications up to 15,000 psi. Featuring a robust one-piece trunnion style ball/stem design and re-torqueable PEEK™ seat glands, these valves ensure reliable shut-off and switching functions. With CW 316 Stainless Steel as standard material and 2507 Super Duplex option, they offer superior durability and corrosion resistance. The full port flow path minimizes pressure drop, while the low friction stem seal enhances cycle life and reduces torque. Meeting a temperature range from 0°F to 400°F, expandable up to 500°F, these valves are equipped with Viton™ Fluoroelastomer/FKM o-rings for enhanced sealing. Ideal for both 2-way Bi-Directional and 3-Way applications, the MPI™ MAB Series is designed to excel in severe service environments.
Product Specifications

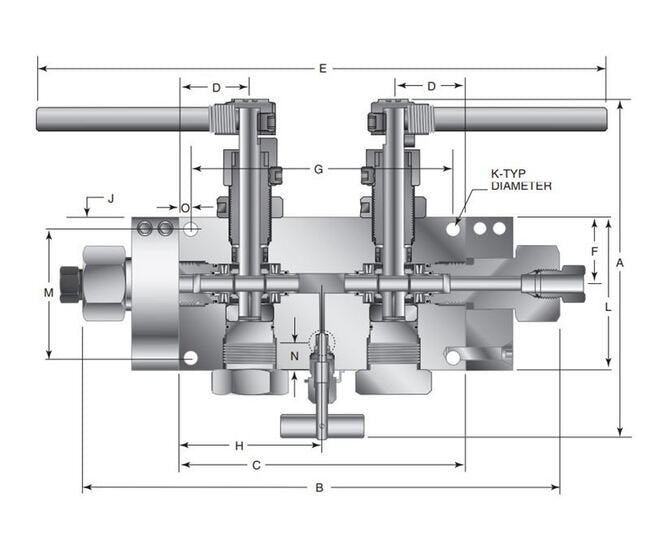

Dimensions A
13.02 in
Dimensions B
15.40 in
Dimensions Block Thickness
3.00 in
Dimensions C
10.50 in
Dimensions Connection
1 MPI™
Dimensions Cv
8.10
Dimensions D
2.66 in
Dimensions E
27.45 in
Dimensions F
2.53 in
Dimensions G
8.69 in
Dimensions H
5.25 in
Dimensions J
.72 in
Dimensions K
.41 in
Dimensions L
5.25 in
Dimensions M
3.81 in
Dimensions Mawp
15000 psi
Dimensions Minimum Valve Orifice
.63 in
Dimensions N Vent Connection
1.75 in
Dimensions O
.91 in
Dimensions Orifice Size
5/8 in
Specifications Features And Benefits
One-piece trunnion style ball/stem design eliminates shear failure and reduces side loading found in two-piece designsRe-Torqueable PEEK™ Seat Glands for longer life CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option)Full Port flow path minimizes pressure dropLow friction, pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torqueTemperature range from 0°F (-18°C) to 400°F (204°C) standard, to 500°F (260°F) as optionViton™ Fluoroelastomer/FKM o-rings are standard, see ordering chart for options2-way Bi-Directional and and 3-Way (Switching or Diverter Styles) available
