MPI™ MAB Series Electric Actuator
MPI™ MAB Series Electric Actuator
SKU:VAL-03dec1
MPI™ MAB Series Electric Actuator - Reliable, precision control for diverse applications. CE & CSA approved. Ideal for laboratories, chemical research, and control systems.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator offers precise control with its 120VAC operation and durable powder-coated aluminum housing. Certified by CE & CSA for NEMA 4 and 4x ratings, this electric actuator ensures reliable performance in temperatures ranging from 0oF to 160oF (-18oC to 71oC). With features like manual override and a 1/2" NPT female conduit connection, this actuator is ideal for a wide range of applications, including laboratories, chemical research, and control panels. Its compatibility with control systems for automated operation and monitoring, along with options for 24VDC and ATEX Flameproof, makes it a versatile choice for institutional buyers seeking efficiency and safety.

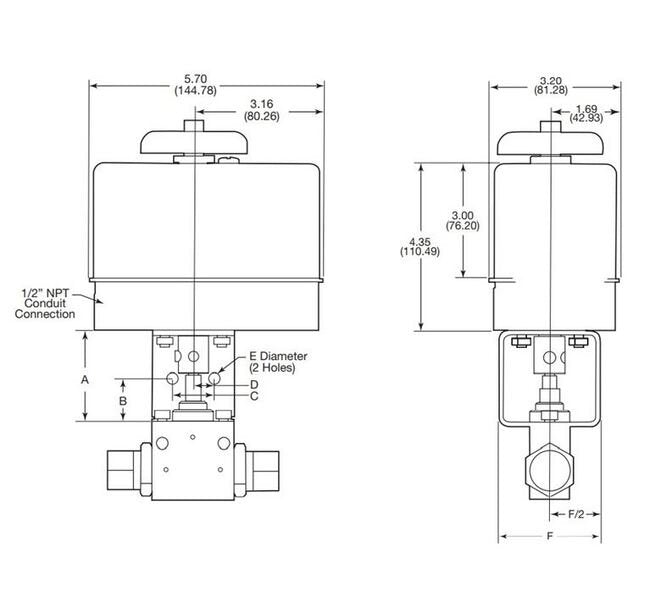

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
