MPI™ MAB Series Electric Actuator - 120 VAC
MPI™ MAB Series Electric Actuator - 120 VAC
SKU:VAL-ba4c01
Reliable MPI™ MAB Series Electric Actuator for precise valve automation in diverse applications. CE & CSA approved, 120/220 VAC options.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 120 VAC
$499.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 120 VAC
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a reliable solution for precise valve automation. Operating from 0oF to 160oF, this actuator features a powder-coated aluminum housing, CE and CSA approval for NEMA 4 and 4x, and a manual override for added control. With a 1/2" NPT female conduit connection and quick 7-second open/close time, it seamlessly interfaces with control systems for automated operation and monitoring. Suitable for various applications including laboratories, pilot plants, and chemical research facilities, it offers 120 & 220 VAC, 50/60 Hz standard voltage options. Explore ATEX Flameproof, Explosion Proof variants and CE mark availability for enhanced safety and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

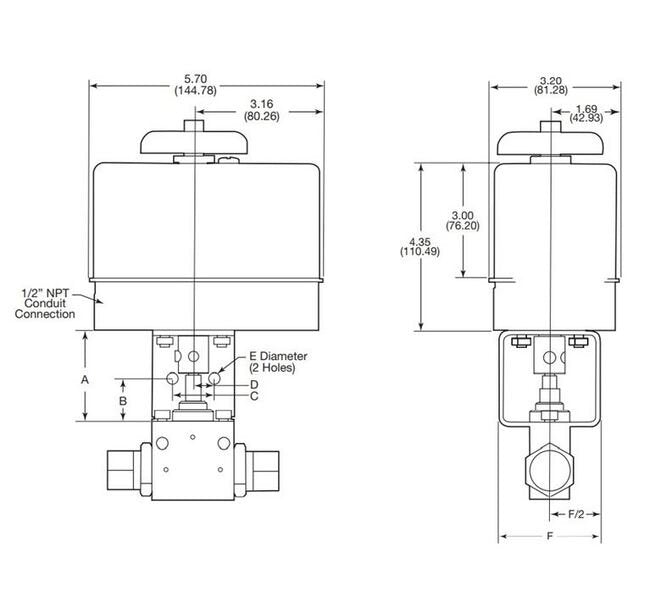

Dimensions A
3.00 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
