MPI™ MAB Series Electric Actuator - 120V AC
MPI™ MAB Series Electric Actuator - 120V AC
SKU:VAL-1d2efe
Reliable MPI™ MAB Series Electric Actuator for automated valve operation, CE & CSA approved, compatible with ATEX Flameproof & Explosion Proof standards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 120V AC
$349.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 120V AC
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a reliable solution for automated valve operation in a variety of industrial settings. Operating at temperatures ranging from -4oF to 158oF, this actuator features a sturdy powder-coated aluminum housing and is CE & CSA approved. With a manual override, explosion-proof enclosure, and watertight design, it meets the standards for NEMA 7 Explosion Proof and ATEX approvals. Its unique features include interface capabilities with control systems, dual voltage options, and compatibility with ATEX Flameproof and Explosion Proof requirements. Ideal for laboratories, chemical research facilities, and more, the MPI™ MAB Series Actuator ensures efficient and safe valve operation.
Product Specifications

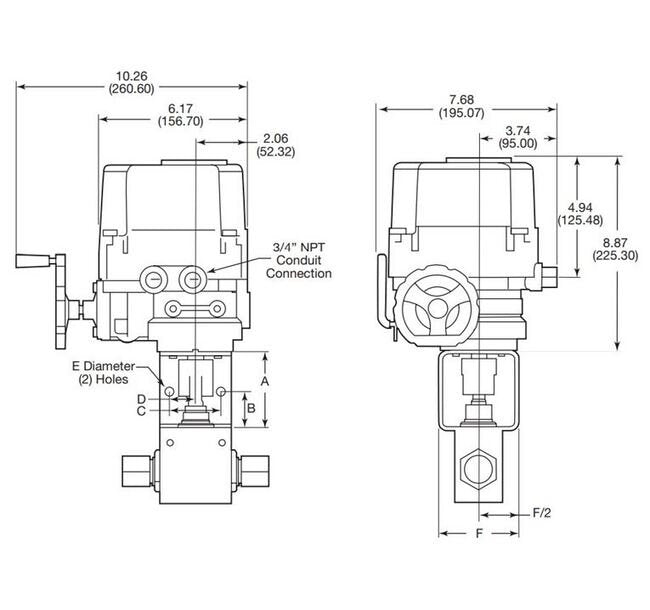

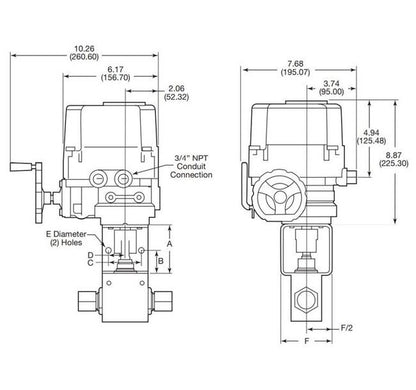

Dimensions A
3.00 in
Dimensions Actuator Height
8.87 in
Dimensions Actuator Length
10.26 in
Dimensions Actuator Width
7.68 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
