MPI™ MAB Series Electric Actuator 120VAC
MPI™ MAB Series Electric Actuator 120VAC
SKU:VAL-ada11b
High-performance MPI™ MAB Series Electric Actuator 120VAC designed for precise valve control in diverse applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator 120VAC
$399.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator 120VAC
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator 120VAC is a high-performance device designed for precise valve control in demanding environments. With an operating temperature range of -4oF to 158oF (-20oC to 70oC), this actuator features a powder-coated aluminum housing for durability. It is CE & CSA approved and equipped with a manual override for added flexibility. The 3/4'' NPT female conduit connection ensures easy installation. Certified as explosion-proof, ATEX approved, and designed to comply with NEMA 7 Explosion Proof, this actuator also boasts a watertight enclosure (IP68 10M 72HR). Interface with control systems for automated operation and monitoring, making it ideal for various applications such as laboratories, chemical research, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

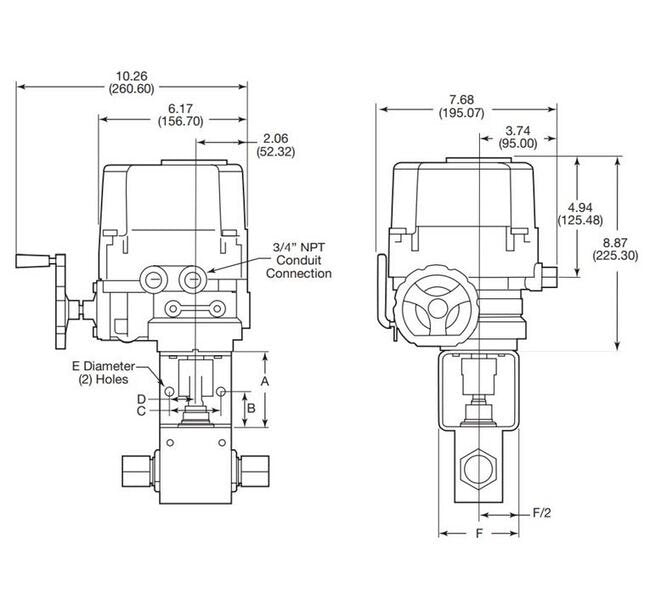

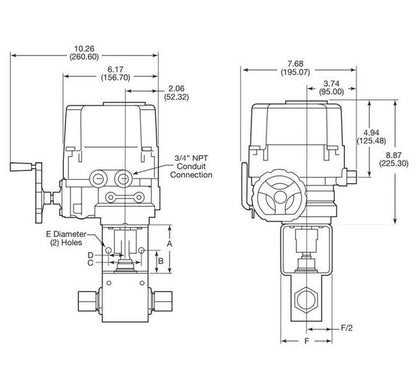

Dimensions A
3.00 in
Dimensions Actuator Height
8.87 in
Dimensions Actuator Length
10.26 in
Dimensions Actuator Width
7.68 in
Dimensions B
1.50 in
Dimensions C
1.00 in
Dimensions D
.50 in
Dimensions E
.28 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
