MPI™ MAB Series Electric Actuator
MPI™ MAB Series Electric Actuator
SKU:VAL-12c6df
Reliable MPI™ MAB Series Electric Actuator for precise and automated valve operation. CE & CSA approved, suitable for diverse applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a reliable and efficient solution for automated valve operation. With a durable powder-coated aluminum housing, this actuator is designed to withstand temperatures ranging from 0°F to 160°F (-18°C to 71°C). CE and CSA certifications ensure compliance with NEMA 4 and 4x standards, making it suitable for a wide range of applications. This actuator features a 1/2" NPT female conduit connection and a manual override option for added flexibility. Whether used in laboratories, control panels, or chemical research facilities, the MPI™ MAB Series Actuator delivers seamless automation and precise control.
Product Specifications

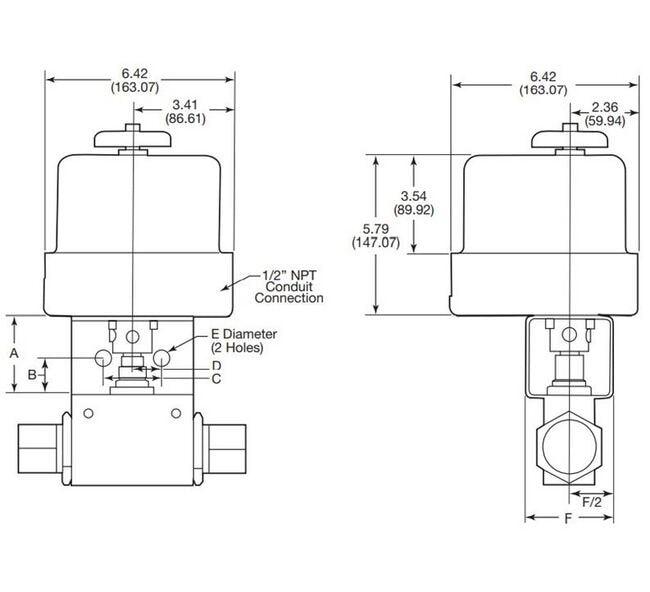

Dimensions A
3.00 in
Dimensions Actuator Height
5.79 in
Dimensions Actuator Length
6.42 in
Dimensions Actuator Width
6.42 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.56 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
5 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
