MPI™ MAB Series Electric Actuator - 24 VDC
MPI™ MAB Series Electric Actuator - 24 VDC
SKU:VAL-814383
Reliable MPI™ MAB Series Electric Actuator - 24 VDC for automated control in diverse industrial settings. CE/CSA approved, swift open/close.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 24 VDC
$249.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 24 VDC
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator in 24 VDC offers precise control and reliability. With a 0°F to 160°F operating temperature range and a powder-coated aluminum housing, this actuator is CE & CSA approved for NEMA 4 and 4x ratings, ensuring durability in diverse environments. It features a manual override, 1/2" NPT female conduit connection, and swift 5-second open/close time. Interface with control systems for automated operation and monitoring, with options for 120 & 220 VAC, 50/60 Hz standard voltages. ATEX Flameproof and Explosion Proof variants are available, along with CE marking. Ideal for laboratories, pilot plants, test stands, and other industrial applications.
Ready to Grow Without Cash Flow Constraints?

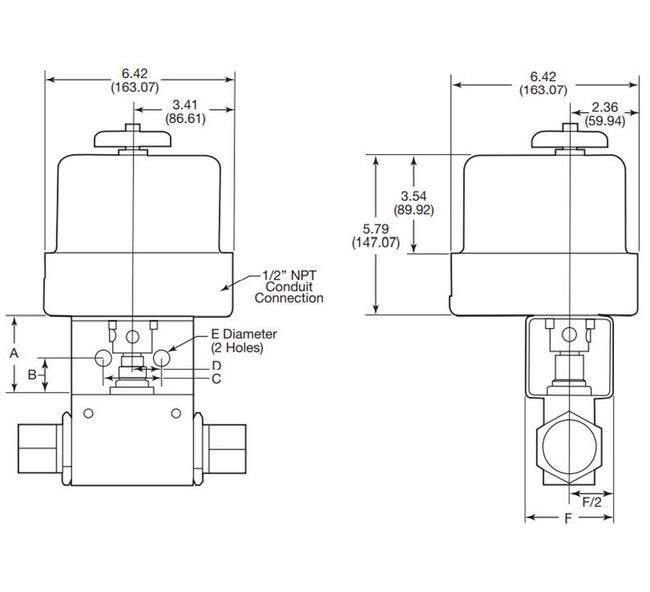

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
5.79 in
Dimensions Actuator Length
6.42 in
Dimensions Actuator Width
6.42 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.53 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
5 sec
Dimensions Voltage
24 DC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
