MPI™ MAB Series Electric Actuator - 24 VDC
MPI™ MAB Series Electric Actuator - 24 VDC
SKU:VAL-0e9b52
Top-quality MPI™ MAB Series Electric Actuator - CE & CSA approved for NEMA 4 and 4x, ideal for industrial automation.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 24 VDC
$299.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 24 VDC
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a top-quality solution for automated valve operation in various industrial settings. With a robust powder-coated aluminum housing and CE & CSA certifications for NEMA 4 and 4x ratings, this electric actuator offers reliable performance in temperatures ranging from 0oF to 160oF (-18oC to 71oC). The actuator features a manual override option, 1/2" NPT female conduit connection, and 24 VDC voltage. It integrates seamlessly with control systems for automated operation and monitoring, making it ideal for applications in laboratories, pilot plants, test stands, and more. Additionally, ATEX Flameproof and Explosion Proof options are available, ensuring safety and compliance in hazardous environments.
Product Specifications

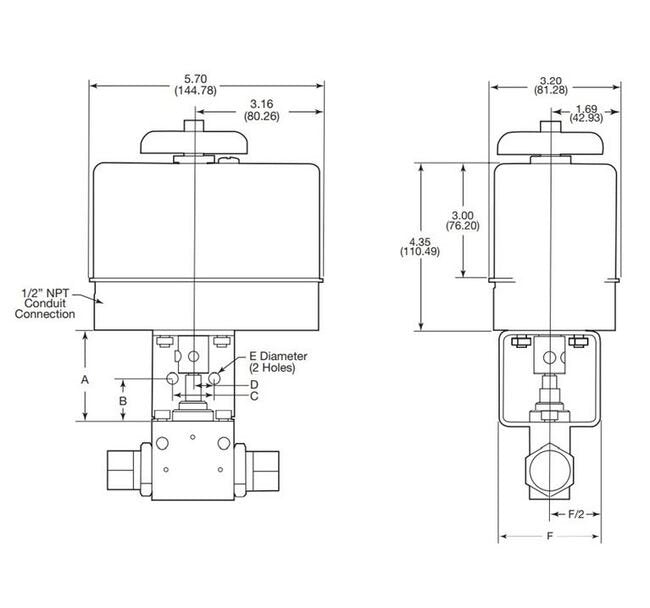

Dimensions A
2.50 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.25 in
Dimensions C
1.00 in
Dimensions D
.50 in
Dimensions E
.28 in
Dimensions F
2.50 in
Dimensions No Load Time Openclose
3 sec
Dimensions Voltage
24 DC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
